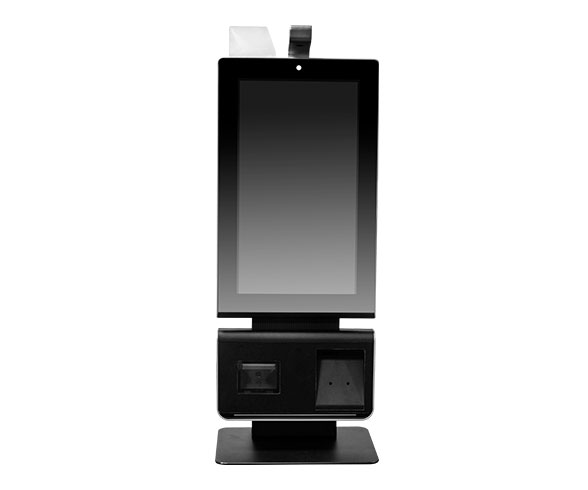

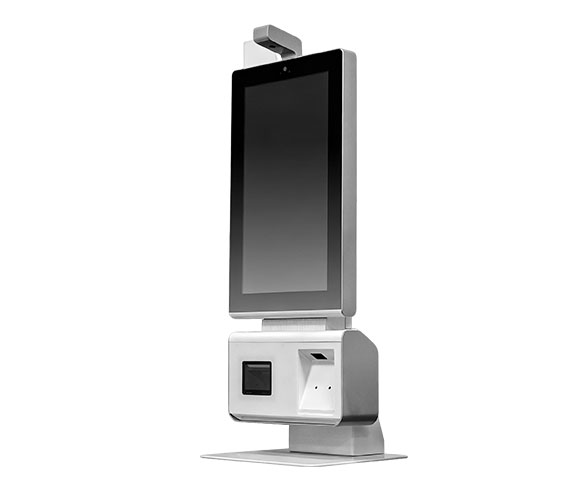

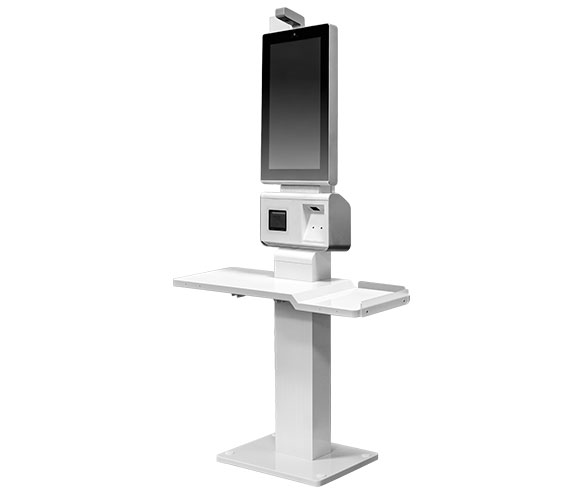

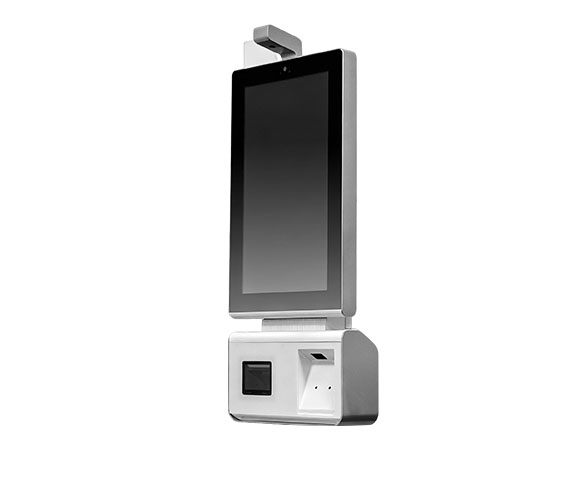

21.5" Self-service Kiosk
ZAFIRO SUPERMARKET VERSION
21.5-inch FHD bezel-free screen with superior visual experience and smooth user-interaction.
Color LED Indicator
Multicolor lights provide real-time visual alerts for instant equipment monitoring.
Modular Design
Supports optional modules including payment terminal, MSR, NFC and camera to fit varied commercial scenarios.
High-Speed Printer
Ensures rapid receipt printing with e ortless paper roll replacement to minimize downtime.
2D Barcode Scanner
High-performance scanning instantly reads product QR codes to streamline checkout.
Specification Parameter
| Model Number | ZAF215K-A(Supermarket Version) |
| SYSTEM | |
| Processor |
RK3568 Quad-Core Cortex-A55 up to 2.0GHz RK3576 Quad-core Cortex-A72 + Quad-core Cortex-A53 up to 2.2GHz |
| Memory | 4GB DDR4 |
| Storage | 32GB EMMC |
| OS | Android 11 |
| DISPLAY | |
| Type | 21.5 Inch TFT LED Backlight LCD |
| Resolution | 1920*1080 |
| Aspect Ratio | 16:9 |
| Brightness | 300cd/m2 |
| Touchscreen | Projective Capacitive Touch Screen |
| INTERFACE | |
| Display | 1*HDMI |
| Standard USB Port | 2*Internal USB, 2*External USB |
| LAN | 1*Gigabit Ethernet, RJ45 |
| Audio | 2*Internal 3W Speaker |
| Power DC-IN | Input AC 100~240V/50~60hz |
| STANDARD COMPONENTS | |
| Scanner | 2D Barcode Scanner |
| Printer | 3" Printer W/Auto Cutter, 200 mm/sec (Max.) |
| Status Indicator | Color LED Indicator |
| PHYSICAL&ENVIRONMENTAL | |
| Operating Temperature | Operating 0~60° |
| Operating Temperature | Storage -35°~75° |
| Cooling | Fanless or with CPU Fan |
| Dimensions(W×H×D) |
Wall Mounting: 923.5*422*115(mm) Floor-standing: 1734*550*450(mm) |
| Net Weight |
Countertop Stand: 24.84kg Floor-standing: 45.42kg |
| Color | Black/Silver |
| OPTIONS & PERIPHERALS | |
| Wifi | IEEE 802.11 a/b/g/n/ac, 2.4Ghz |
| Bluetooth | Bluetooth 5.0(Option) |
| MSR | Comply with ISO 7811, Support 1&2&3 Track (Option) |
| NFC |
MIFARE, FeliCa, IS0/IEC 14443A/B ISO/IEC 18092,ECMA 340 NFCIP-1 Peer-to-Peer (Option) |
| Camera | 2 MP Wide Angle Camera (Option) |
| 4G/LTE Communication | Support Selected Bands & Countries With Full SIM Slot (Mini-pcl e Module) By Request |
| Payment Termimal Bracket | Adjustable Bracket (Option) |
