Apollo

Description

Function introduction

High-performance industrial motherboard.
Ensure stable quality and extend product life.
Brand new 11.6" IPS multi-touch capacitive HD BOE screen.
Bring high-definition and comfortable user experience, suitable for indoor and outdoor environments.
The innovative hardware design invested by Jassway is exquisite, unique, and stylish.
Caters to your store's aesthetic taste.

Feature

SYSTEM
Processor	Rockchip RK3288, Quad-core Cortex A17 up to 1.8GHz
Memory	4GB Standard, DDR3
Storage	16GB eMMC standard, upgradable to 32GB
OS	Android 8.1
DISPLAY
Type	11.6 inch TFT LED Backlight
Resolution	1366*768
Brightness	220cd/m2
Touchscreen	Projective Capacitive Touch Screen
INTERFACE
Display	1*HDMI
USB	5*USB2.0 (side 2, rear 3)
Serial	2*COM
LAN	1*Gigabit Ehernet, RJ45
Power DC-IN	Input AC 100~240V/50~60hz, Output DC12V/5A
PHYSICAL&ENVIRONMENTAL
Operating Temperature	Operating 0~60°
Storage Temperature	Storage-35°~75°
Dimensions(W×H×D)	300 x 95 x 220(mm)
Packing Dimensions(W×H×D)	420 x 325 x 170(mm)
Net Weight	1.6KG
Packing Weight	2.7KG
Certification	CE,FCC,RoHS
Color	Black/White

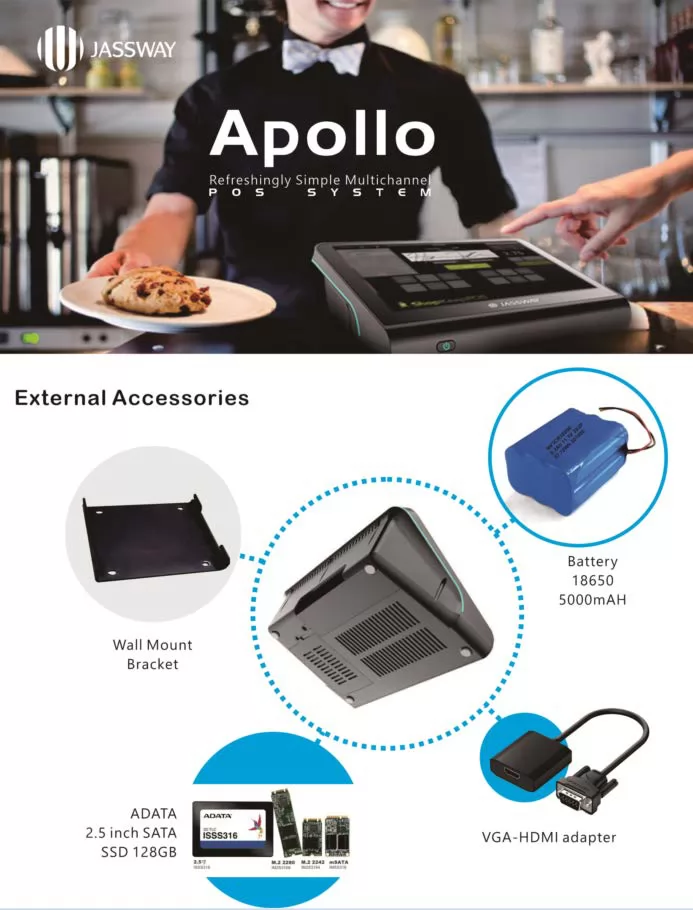

OPTIONS & PERIPHERALS
WIFI	802.11 a/b/g/n wireless protocol
Bluetooth	Bluetooth 4.0 protocol
Speaker	Built-in 3W speaker
4G module	Support 4G TD-LTE, FDD-LTE (factory option)
SD card	up to 64GB(option)
Battery	5000mAh(option)
VESA	75*75mm bracket(option)
