Description
Reviews
FEATURES

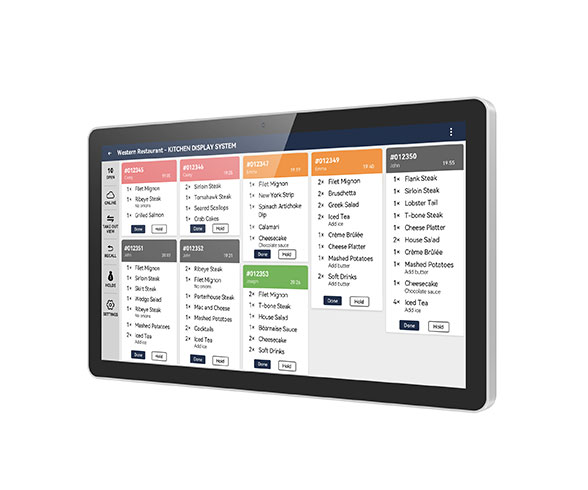

Commercial Grade PCAP Touch Screen
The PCAP capacitive touchscreen offers ample display space for full customization of layouts and functions.
Reduce unnecessary touches, cut ticket times, and keep your kitchen running smoothly.
Power Over Ethernet (POE+)
Power over Ethernet (PoE) eliminates the need for dedicated power outlets, adapters, and complex cabling at every station.
Fewer failure points mean easier troubleshooting, simpler maintenance, and hassle-free support.

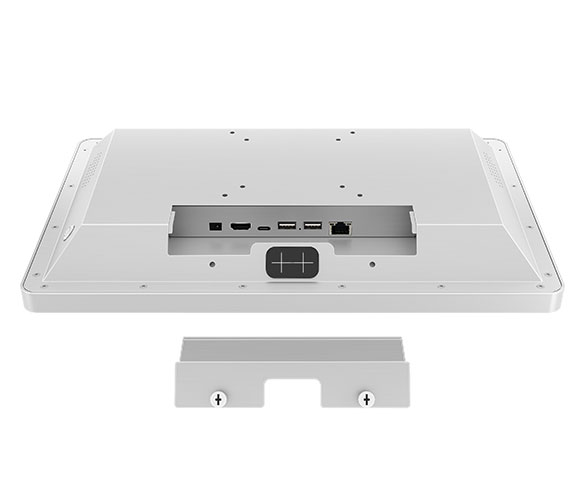

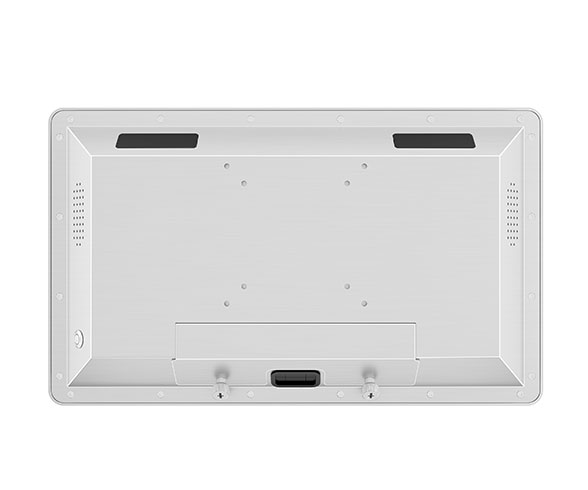

Unlock More Possibilities With A Vesa Mount
Athena can be mounted with a VESA mount, enabling more applicable scenarios. For example, it can be used as a kitchen display of a KDS , greatly improving the restaurant operational efficiency.
SPECIFICATIONS
Model Number
ATH156A
SYSTEM
Processor
RK3576S Quad core cortex A72+Quad core cortex A53
GPU
ARM Mali G52 MC3
NPU
3 TOPS
Memory
4GB
Storage
32GB
OS
Android 14
DISPLAY
Type
15.6-inch LED Backlight Display
Resolution
1920*1080
Aspect Ratio
16:9
Color gamut
45% NTSC
Viewing angle
R/L 85/85, U/D 85/85
Contrast ratio
1000:1
Luminance
400 nits
Touchscreen
Projective Capacitive Touch Screen
INTERFACE
Display
1*HDMI 2.0
USB
1*USB3.0, 1*USB2.0
LAN
1*RJ45 10/100/1000M Ethernet
Type-C
1* Type-C (Only supports OTG function)
Power DC-IN
DC 12V/2A
PHYSICAL&ENVIRONMENTAL
Operating Temperature
Operating 0~40° at 20% to 80% Humidity
Operating Temperature
Storage -20°~60° at 10% to 95% Humidity
Dimensions(W×H×D)
343.56x228x47.2 MM
Packing Dimensions
437x127x309 MM
Net Weight
2.92KG
Material
Stainless steel/Sheet metal
Color
Matte Black/Silve
OPTIONS & PERIPHERALS
Wifi
IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6 )
Bluetooth
Bluetooth 5.4
Speaker
2*3W Speaker
Camera
8.0MP
POE
IEEE STD 802.3BT
Waterproof rating
Front IP65, Back IP54
Wall Mount
VESA 75*75MM /100*100MM Bracket
