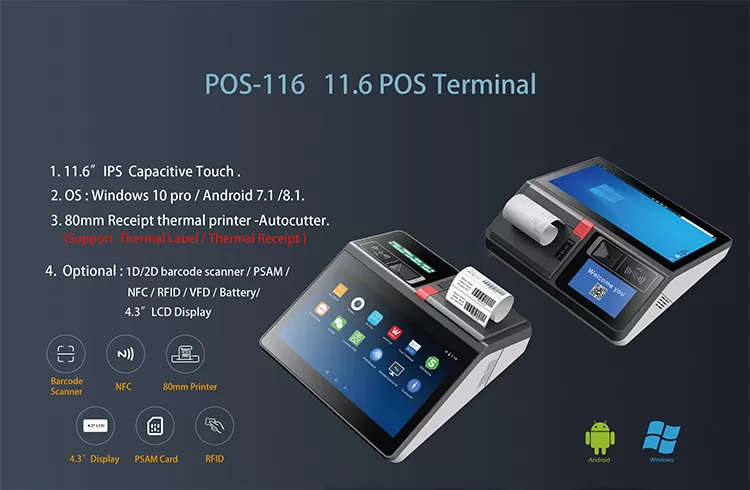

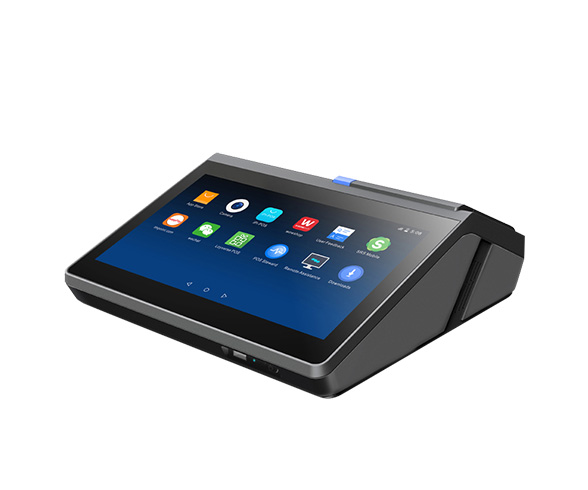

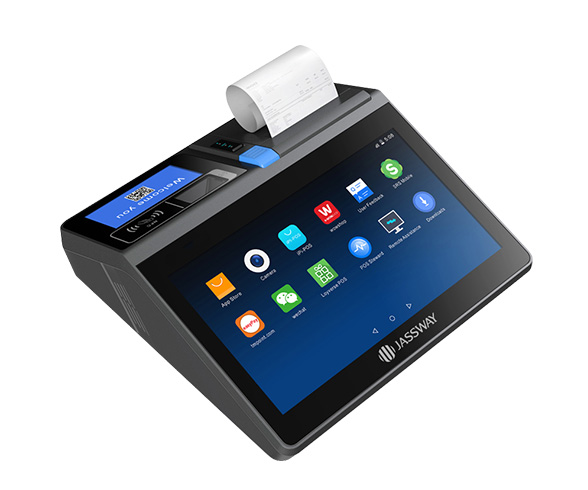

This 11.6-inch all-in-one POS system is designed to integrate printing and scanning functions into a compact and efficient checkout solution.

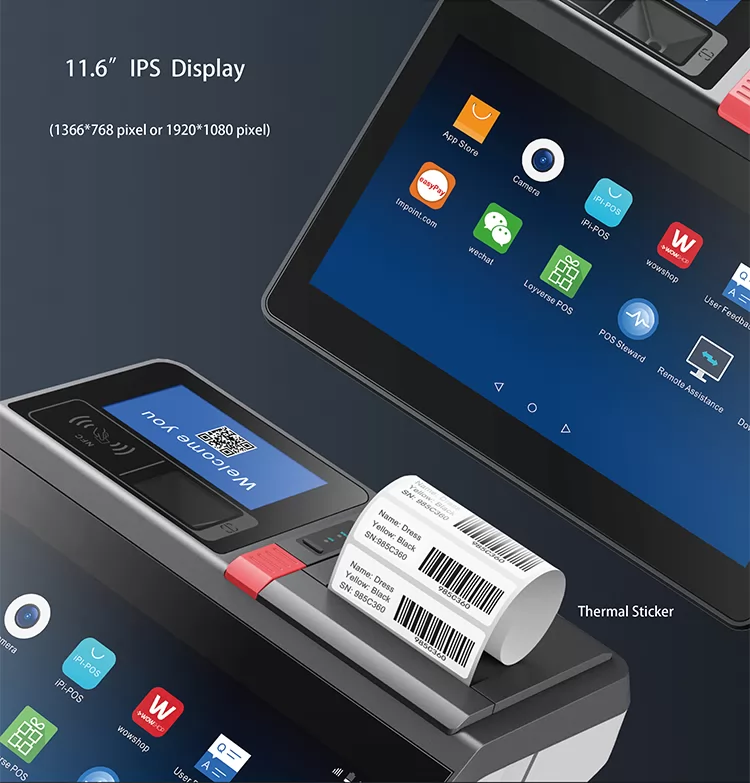

11.6-Inch HD Touch Display
Features an 11.6-inch projective capacitive touch screen with HD resolution, offering clear visuals, responsive touch control, and a comfortable viewing experience for daily point-of-sale operations.

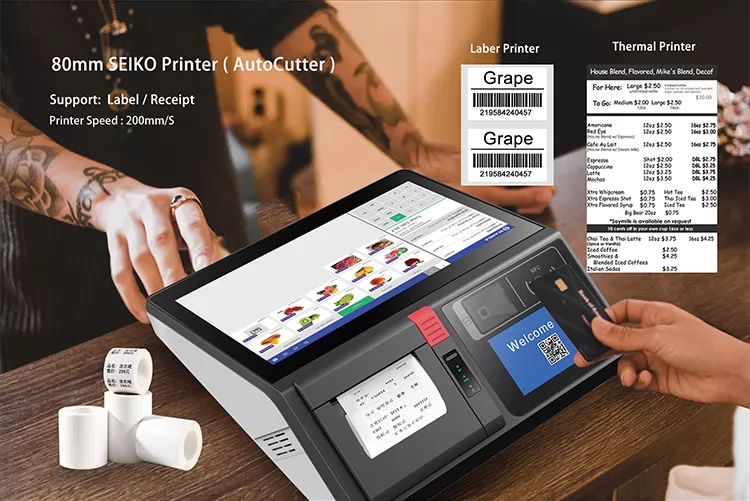

Integrated Thermal Receipt Printer
Equipped with a Seiko thermal printer mechanism with auto cutter, delivering fast and reliable printing at up to 200mm/s. Supports USB, COM, or optional Bluetooth interfaces for flexible installation.

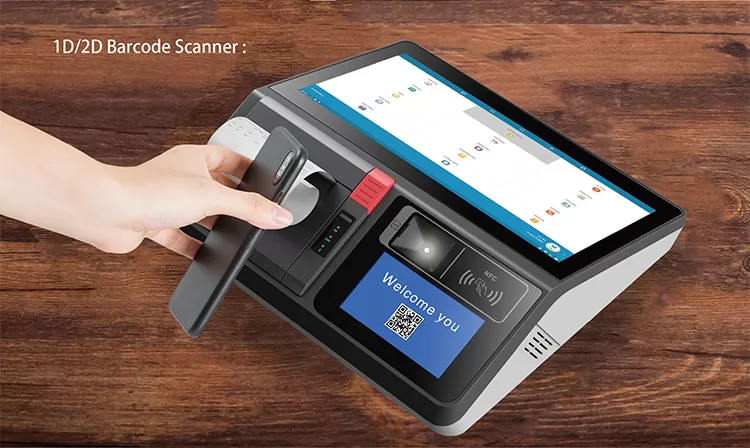

Optional Embedded Barcode Scanner
Supports optional built-in barcode scanner compatible with both 1D and 2D codes, improving checkout efficiency and reducing the need for external scanning devices.
Powerful Android Performance
Powered by the Rockchip RK3288 quad-core Cortex-A17 processor and running Android 7.1 or 8.1, ensuring smooth operation and compatibility with a wide range of POS applications.
Rich I/O Interfaces for Expansion
Offers multiple USB ports, dual VGA outputs, LAN, audio interfaces, serial port, and cash drawer support, enabling easy connection to printers, displays, scanners, and other peripherals.
About our industry and products,you may want to know more. We offer tailored solutions and are ready to provide up-to-date information and support.
Get to Know Us Now
Description
Reviews

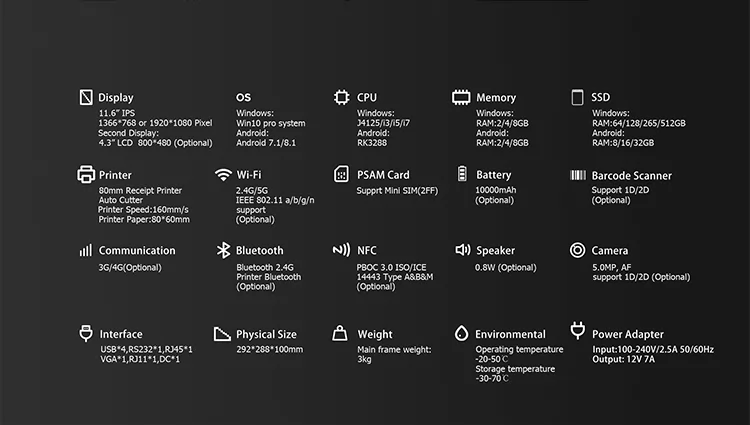

Product Specification
SYSTEM
Processor
Rockchip RK3288, Quad-core Cortex-A17 up to 1.8GHz
Memory
2GB Standard, 4GB Option
Storage
16GB Standard, 32GB Option
OS
Android 7.1 / 8.1
DISPLAY
Type
11.6 inch HD Display
Resolution
Standard 1366*768, 1920*1080 Option
Aspect Ratio
16:9
Brightness
250 nits
Touchscreen
Projective Capacitive Touch Screen
PRINTER
Printer Mechanism
Seiko Thermal Printer Mechanism with Auto Cutter
Interfaces
Standard USB Port, COM Port or Bluetooth Option
Printing Method
Direct Thermal
Printing Speed
200mm/s
Paper Width
79.5 ± 0.5mm
Print Width
72mm
Paper Roll Diameter
60mm
INTERFACE
USB
5* USB
LAN
1*RJ45
VGA
2*VGA
Audio
1*Line Out, 1*Mic In
Serial
1*COM(RS232)
Cash Drawer
1*RJ11
Power DC-IN
Input AC 100~240V/50~60hz, Output DC 12V/5A
PHYSICAL&ENVIRONMENTAL
Operating Temperature
Operating 0~50°
Operating Temperature
Storage-20°~60°
Cooling
Fanless/With CPU Fan
Dimensions(W×H×D)
292x100x297(MM)
Packing Dimensions(W×H×D)
370x380x200(MM)
Net Weight
2.35KG
Packing Weight
5.20KG
Color
Black
OPTIONS & PERIPHERALS
2nd Display

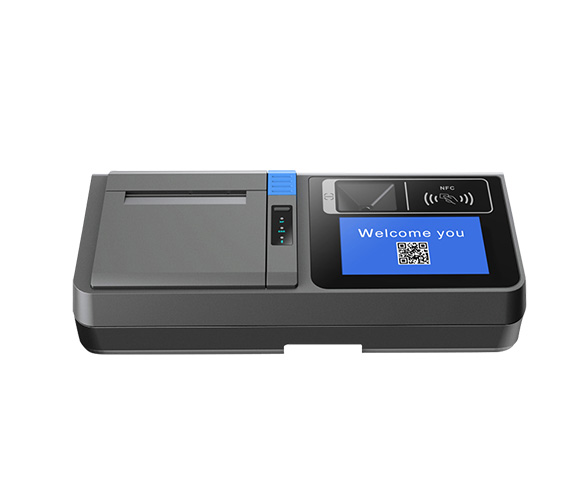

4.3 inch LCD Display Option (Resolution: 800*400)

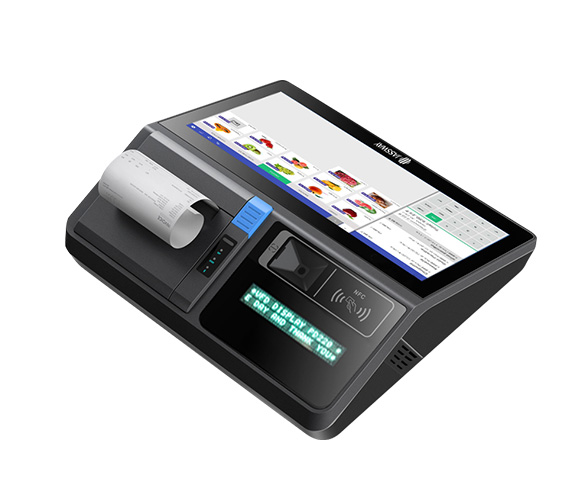

Customer Display
VFD Customer Display Option, 20 Characters*2 Line
Scanner
Embedded Scanner Option, Support 1D, 2D

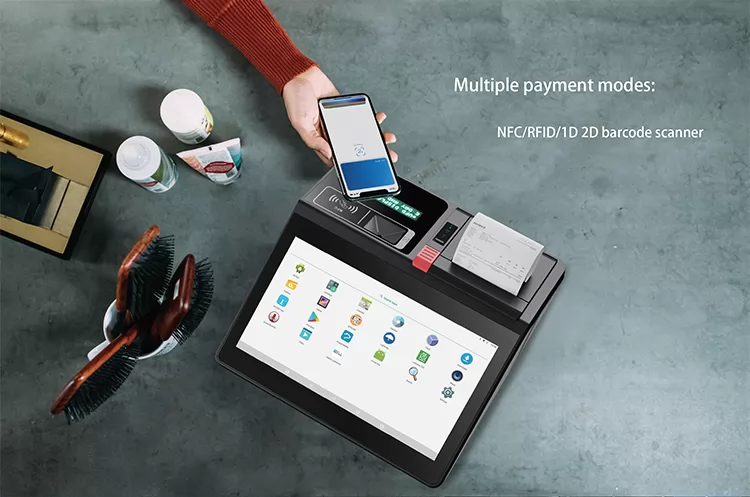

Card Reader
NFC Option
Wifi
IEEE 802.11 a/b/g/n/ac Option
Bluetooth
Bluetooth 4.0 protocol Option
Speaker
1*0.8W Speaker Option
4G module
Support 4G TD-LTE, FDD-LTE (factory option)
