Manto Kiosk

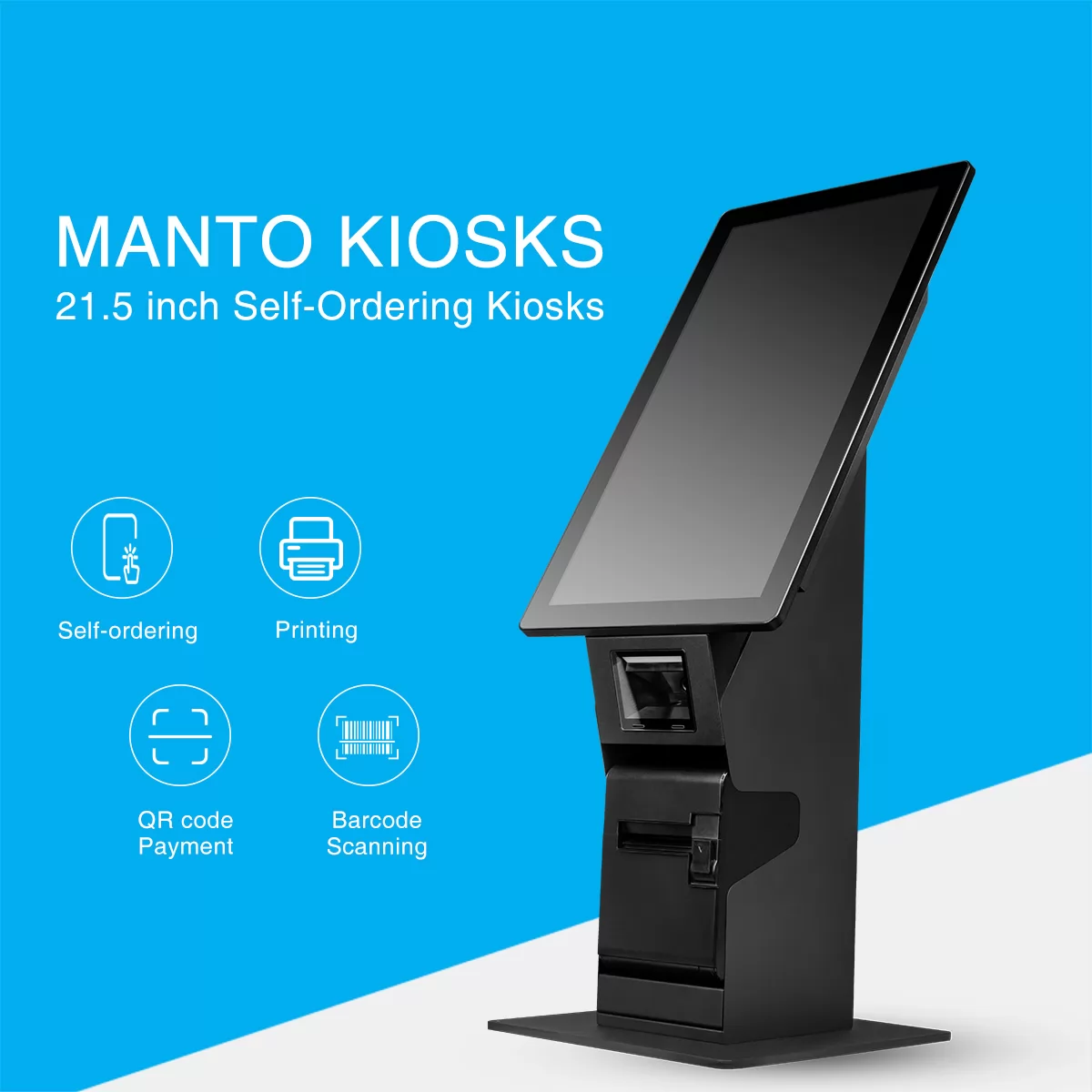

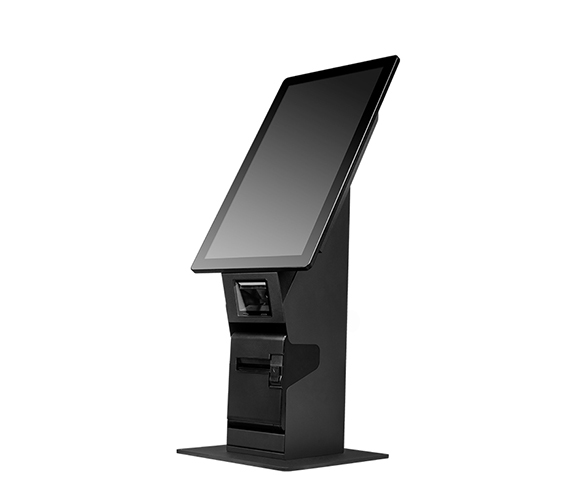

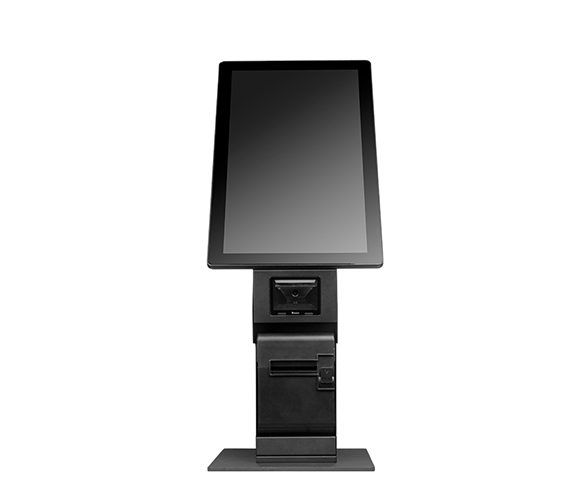

21.5inch Mini Kiosk with Desktop Stand and Printers and scanners

Get a Quote Now

Description

Reviews

Product Specification

Model No.	MAN215A / MAN215W
SYSTEM
Processor	Intel Celeron J1900 Quad-Core, Up to 2.42Ghz Intel Celeron J4125 Quad-Core, Up to 2.70 GHz Intel Celeron J6412 Quad-Core, Up to 2.60 GHz Intel Core i3/i5 3rd, 4th, 5th, 6th, 7th, 8th High Performance CPU
Memory	2GB Standard, DDR3L or DDR4, up to 8GB/16GB/32GB
Storage	mSata or M.2 SSD, up to 512GB
OS	Windows 10, Windows 11, POSReady
DISPLAY

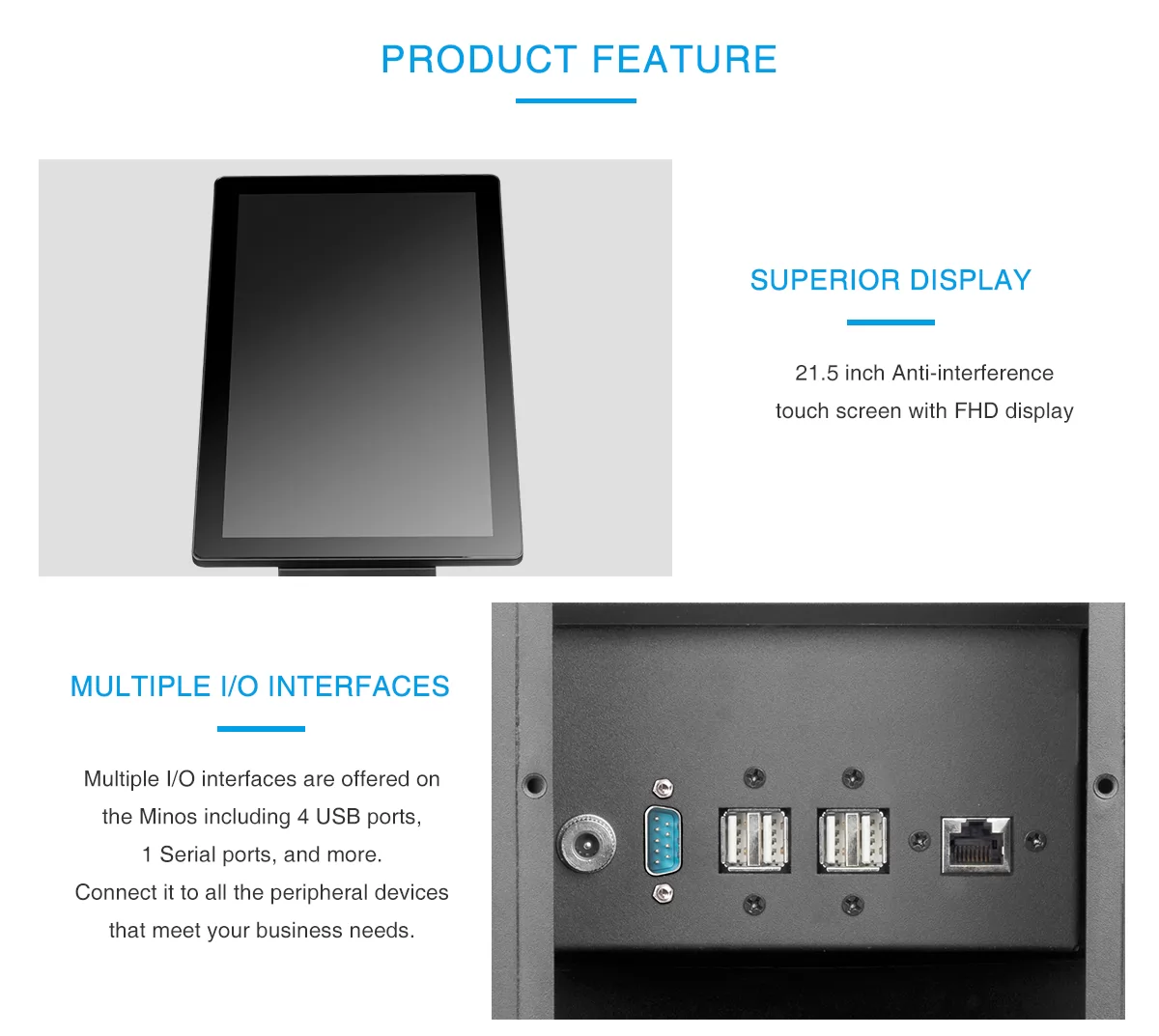

Type	21.5 inch TFT LED backlight LCD
Resolution	1920*1080
Brightness	250cd/m2
Viewing Angle(CR≥10)	178 Degree(H)
Viewing Angle(CR≥10)	178 Degree(V)
Touchscreen	Projective Capacitive Touch Screen
INTERFACE
USB	4*USB
Serial	1*COM(RS232)
LAN	1*Gigabit Ehernet, RJ45
Power DC-IN	Input AC 100~240V/50~60hz, Output DC12V/7.5A
SCANNER
Interface	USB, RS-232 Option
Image Sensor	1280*800 CMOS
Illumination	3000K White LED
Data Capture	1D: Code 11, Code 128, Code 39, GS1-128,(UCC/EAN-128), AIM 128, ISBT 128, Codabar, Code 93, UPC-A/UPC-E, Coupon, EAN-13, EAN-8, ISSN. ISBN, Interleaved 2/5, Industrial 2/5, ITF-14, ITF-6, Standard 2/5, China Post 25, MSI-Plessey, Plessey, GS1 Databar, GS1 Composite, Databar(RSS)
Data Capture	2D: PDF417, QR Code, Data Matrix, Aztec
Resolution	≥4mil(1D)
Typical Depth of Field	EAN-13 0mm-150mm (13mil) QR Code 30mm-100mm (15mil)
Scan Angle	Roll: 360°, Pitch: ±55°, Skew: ±50°
Min.Symbol Contrast	25%(Code 128 10mil)
Field of View	Horizontal 65.6°, Vertical 44.6°
PHYSICAL&ENVIRONMENTAL

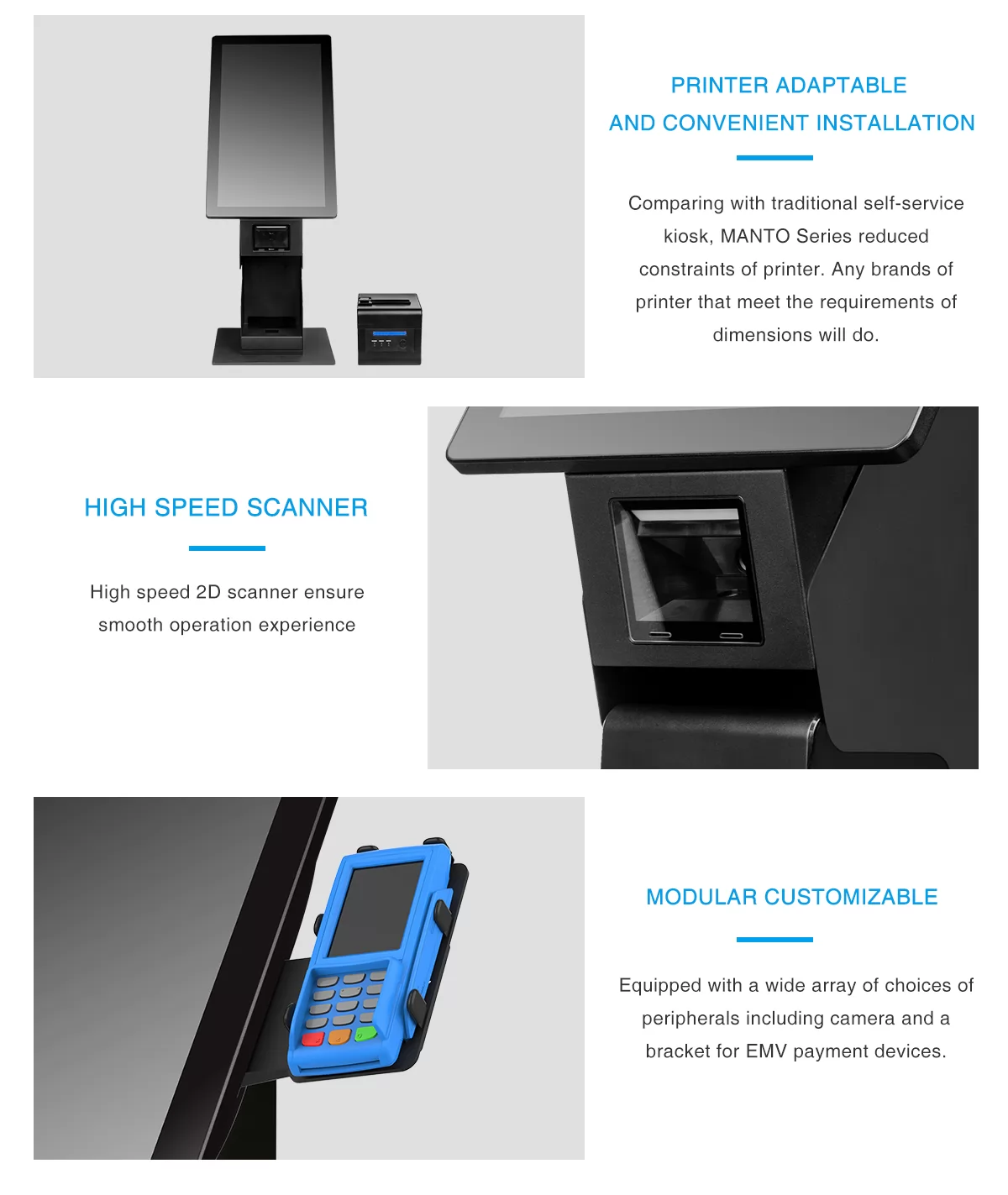

Printer Space	L160 x W130 x H200mm (Printer is not provided)
Operating Temperature	Operating 0~60°
Storage Temperature	Storage -35°~75°
Cooling	Fanless or with CPU Fan

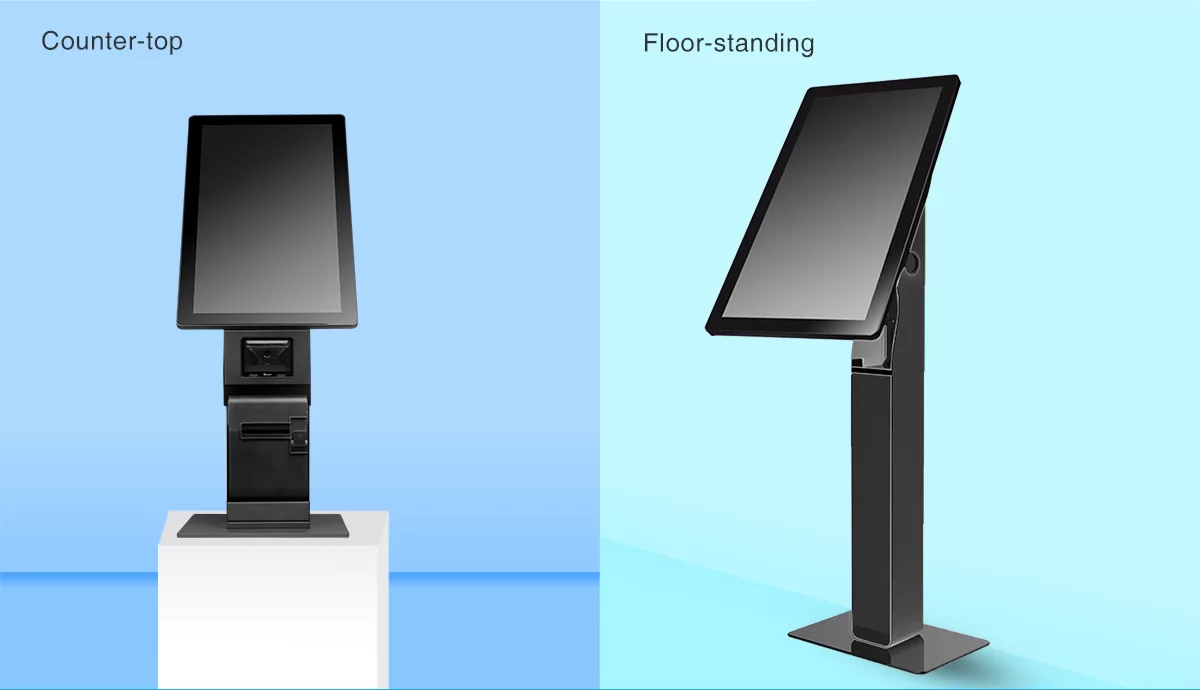

Net Weight	Countertop Stand: 21.20KG Floor-standing: 23.00KG
Dimensions(WxHxD)	Countertop Stand: 310x832x310mm) Floor-standing: 500x1596x360(mm)
Color	Black
OPTIONS & PERIPHERALS
WIFI	Mini PCIe for Wireless LAN(Option)
Bluetooth	Bluetooth 4.0(Option)
Speaker	1*3W
Payment Termimal Bracket	Adjustable Bracket Optional
