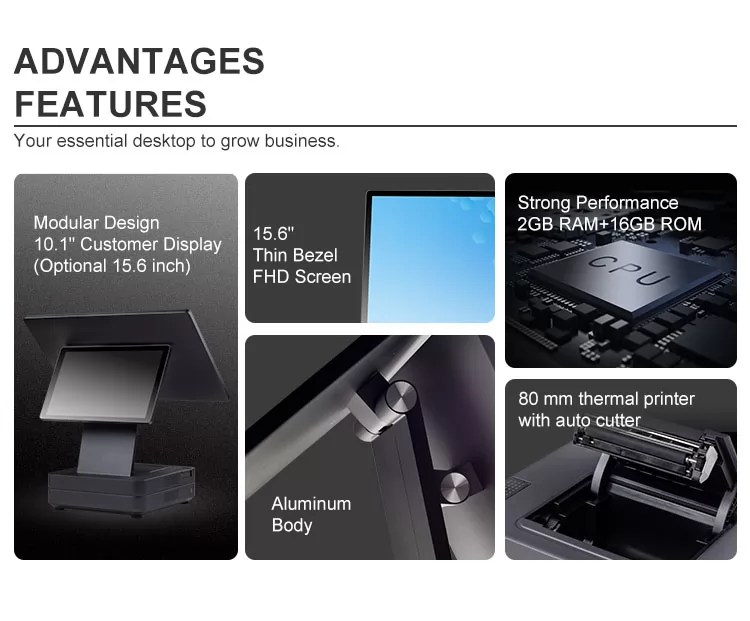

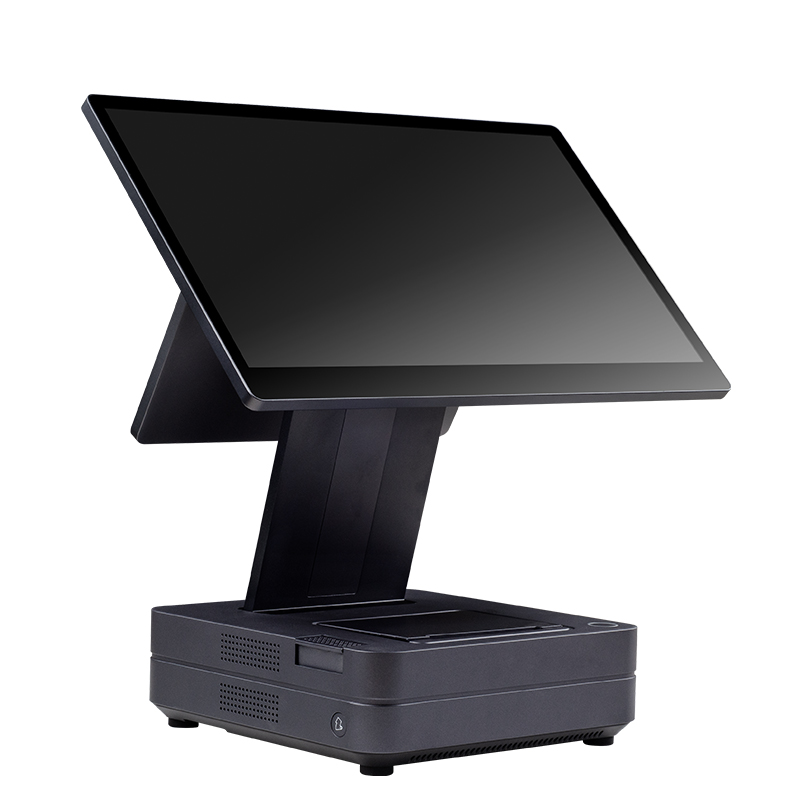

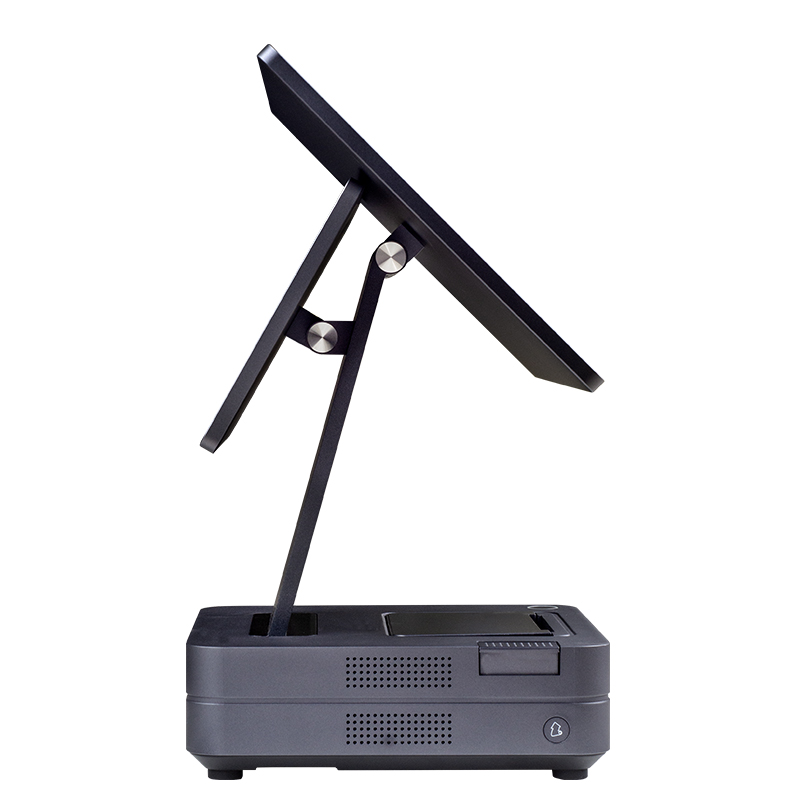

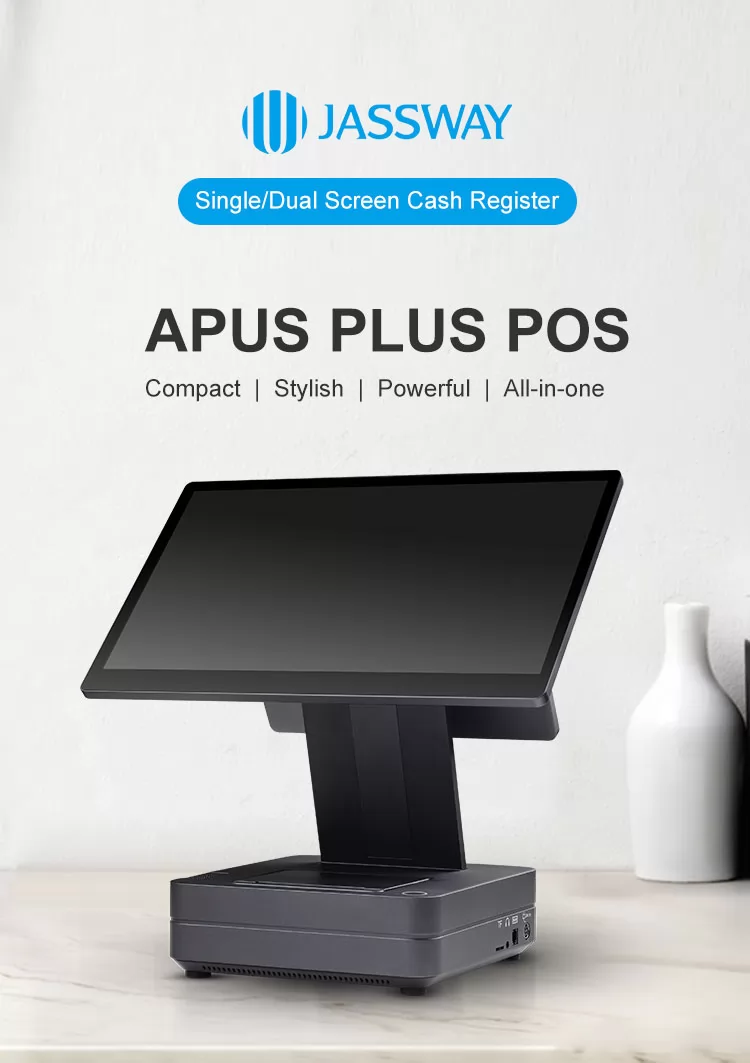

APU156AD PLUS is a 15.6-inch Android POS terminal designed to provide a powerful, intuitive, and efficient point-of-sale solution for retail, hospitality, and service environments.

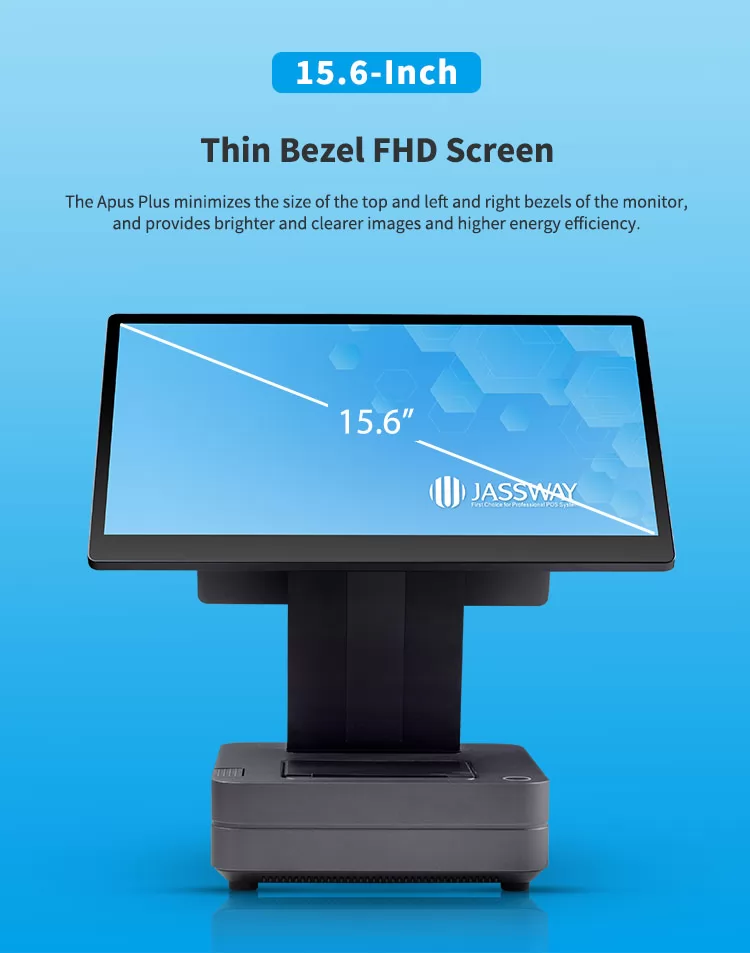

15.6-Inch Multi-Touch Display

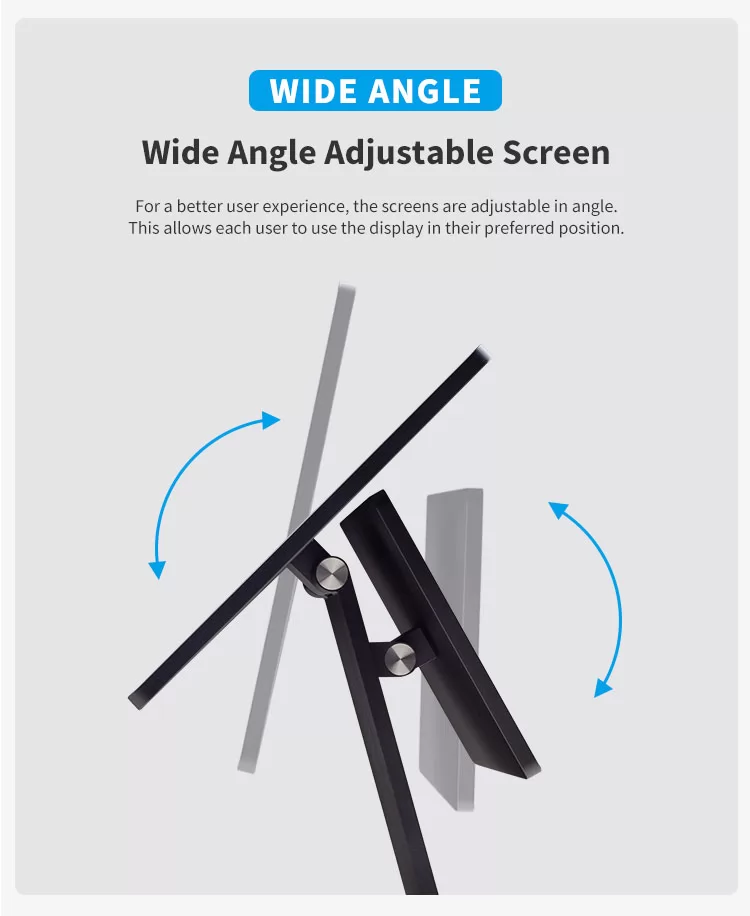

Features a high-resolution LED-backlit 15.6-inch display (1366*768 standard, 1920*1080 option) with G+G capacitive multi-touch, providing a responsive and tablet-like user experience.

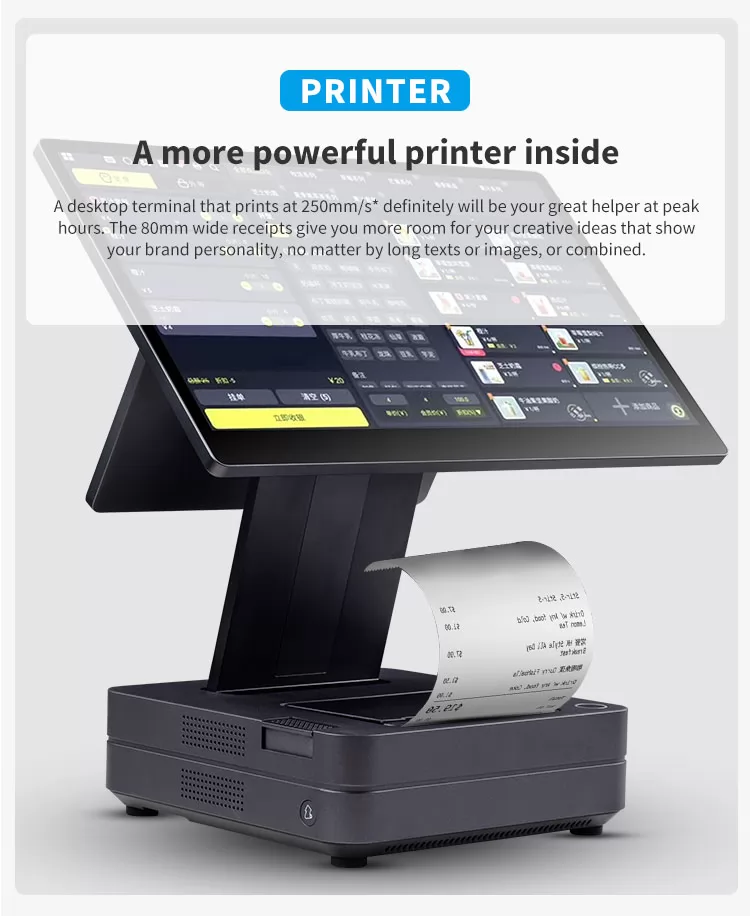

Integrated 80mm Thermal Printer
Equipped with an auto-cutter, the thermal printer supports fast and reliable receipt printing, suitable for high-traffic commercial environments.
High-Performance Android Platform
Powered by RK3568 ARM Cortex-A55 Quad-Core processor with 2GB DDR4 (4GB optional) and Android 11 OS, ensuring smooth operation and compatibility with modern POS software.
Multiple Connectivity Options

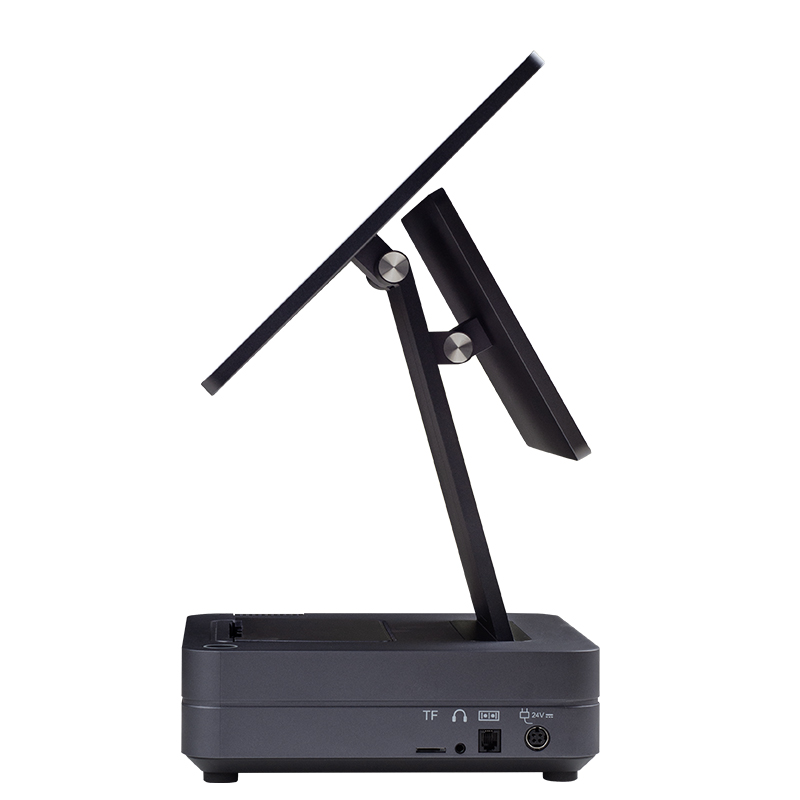

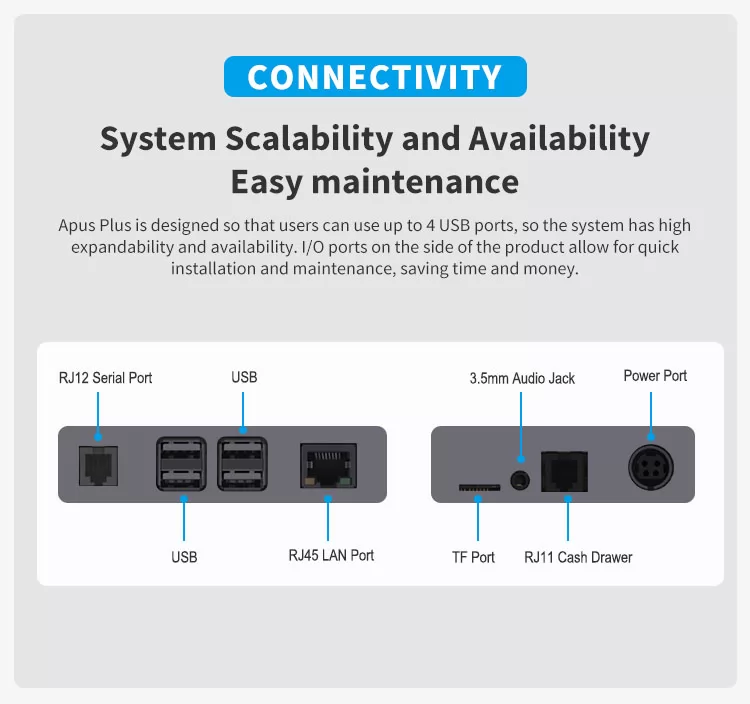

Includes 4 USB ports (1 OTG), RJ45 Ethernet, serial interface, RJ11 cash drawer, TF expansion slot, and audio output, enabling flexible peripheral integration.
Wireless Communication
Optional dual-band Wi-Fi (2.4/5 GHz) and Bluetooth 5.0 support wireless connectivity for peripheral devices or network applications.
Compact and Reliable
Operating temperature of 0~40°C with 5%-90% humidity and storage -20~60°C, ensuring stable performance in varied commercial conditions.
About our industry and products,you may want to know more. We offer tailored solutions and are ready to provide up-to-date information and support.
Get to Know Us Now
Description
Reviews
Specification
Model No.
APU156AD PLUS
SYSTEM
Processor
RK3568 ARM Cortex-A55 Quad-Core, 2.0Ghz
Memory
2GB DDR4 (4GB Option)
Storage
16GB EMMC (32GB Option)
OS
Android 11
DISPLAY
Type
15.6 inch LED Backlight Display
Resolution
1366*768(1920*1080 Option)
Brightness
250 nits
Aspect Ratio
16:9
Touchscreen
Multi-touch capacitive screen, G+G
SECONDARY DISPLAY
Type

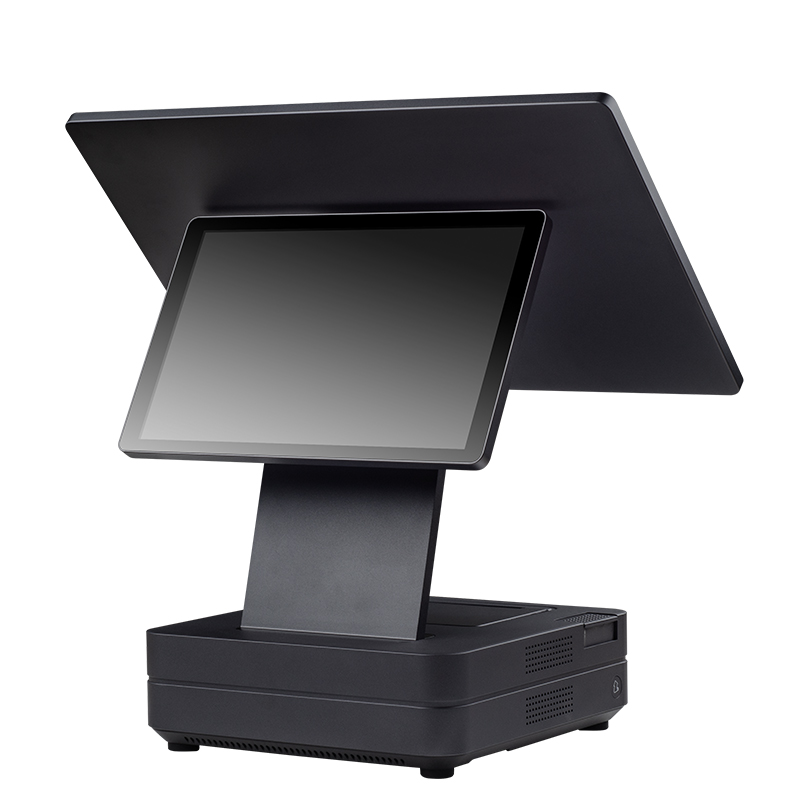

10.1 inch LED Backlight Display (1280*800 Non Touch)
PRINTER
Printer Mechanism
80mm receipt thermal printer with auto cutter
INTERFACE
USB
4*USB(Including 1*USB OTG)
LAN
1*RJ45 10/100M Ethernet
Serial
1*RJ12
Cash Drawer
1*RJ11
SD Port
1*TF expansion card
Audio
1*3.5 mm audio output
Power DC-IN
Input AC 100~240V/50~60hz, Output DC 24V/2.75A
PHYSICAL&ENVIRONMENTAL
Operating Temperature
Operating 0~40° at 5% to 90% Humidity
Storage Temperature
Storage -20°~60° at 10% to 90% Humidity

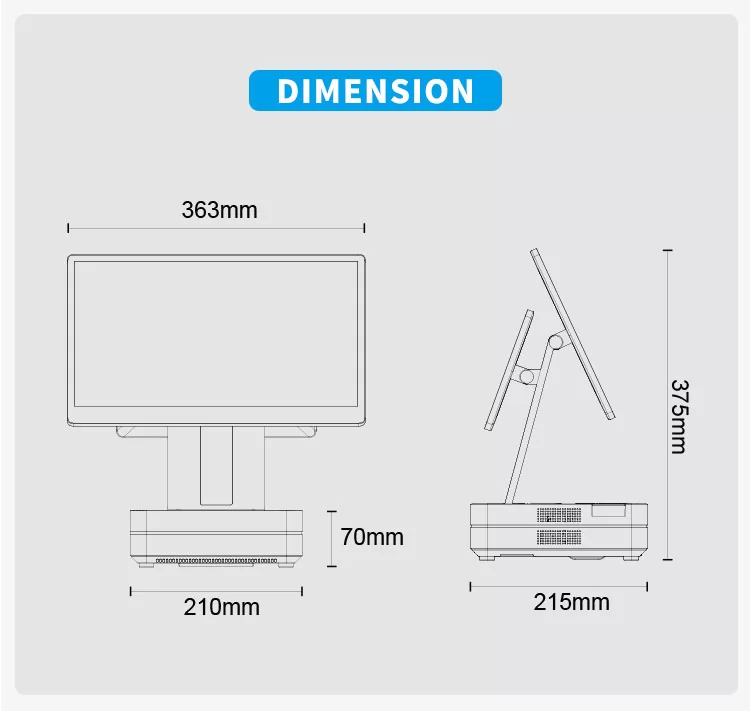

Dimensions
(W×H×D) 210x363x375 mm
Packing Dimensions
(W×H×D) 290x410x467 mm
Net Weight
3.60KG
Packing Weight
3.95KG

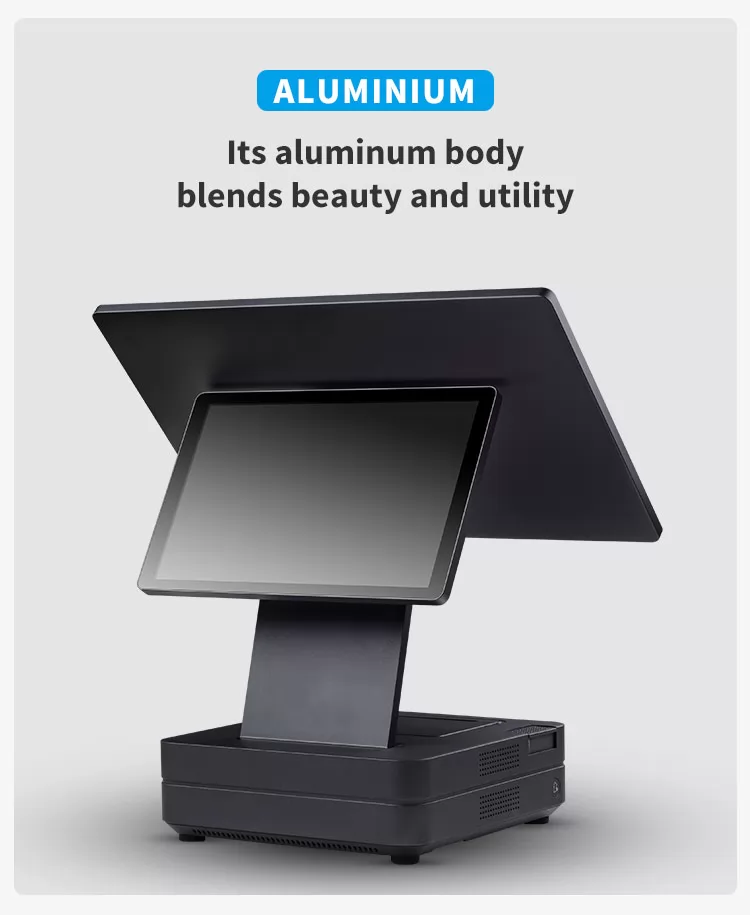

Material
Anodised aluminum, plastic
Color
Space black
OPTIONS & PERIPHERALS
Wifi
2.4 g/5 g dual-band Wi-Fi
Bluetooth
Bluetooth 5.0
Speaker
1*2W
Share your thoughts with us today!
Showing
Most recent
Top Reviews
Read more
Your rating
Your review *
Name *
Enter your Name
Email *
Enter your Email
Upload Image
Notice: Ensure your image is no larger than 200KB before uploading.
Submit
Contact a Jassway Pos Expert Now !
Send Message

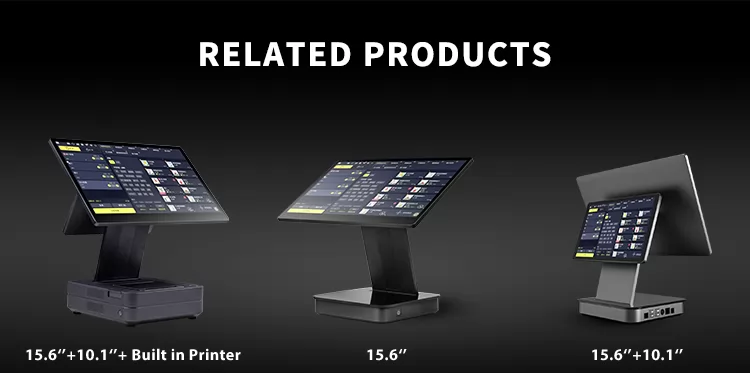

Related Products
