| Specifications | |
| SYSTEM | |
| Processor | Rockchip RK3288, Quad-core Cortex-A17 up to 1.8GHz |
| Memory | 4GB Standard, DDR3 |
| Storage | EMMC 32GB |
| OS | Android 8.1 |
| DISPLAY | |

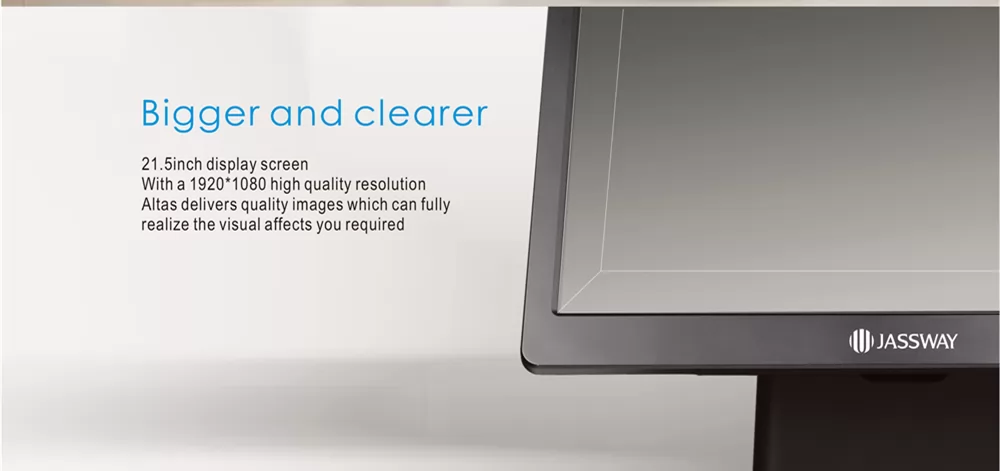

| Type | 21.5 inch TFT LED Backlight |
| Resolution | 1920*1080 |
| Aspect Ratio | 16:9 |
| Brightness | 250 nits |
| Touchscreen | Projective Capacitive Touch Screen / Non Touch Display |
| INTERFACE | |
| Display | 1*HDMI |
| USB | 4*USB2.0 |
| COM | 2*RS232 |
| LAN | 1*RJ45 |
| Audio | 1*Mic-in |
| Power DC-IN | Input AC 100~240V/50~60hz, Output DC12V/7.5A |
| SD Socket | Up to 64GB |
| PHYSICAL&ENVIRONMENTAL | |
| Operating Temperature | Operating 0~60° |
| Storage Temperature | Storage-35°~75° |

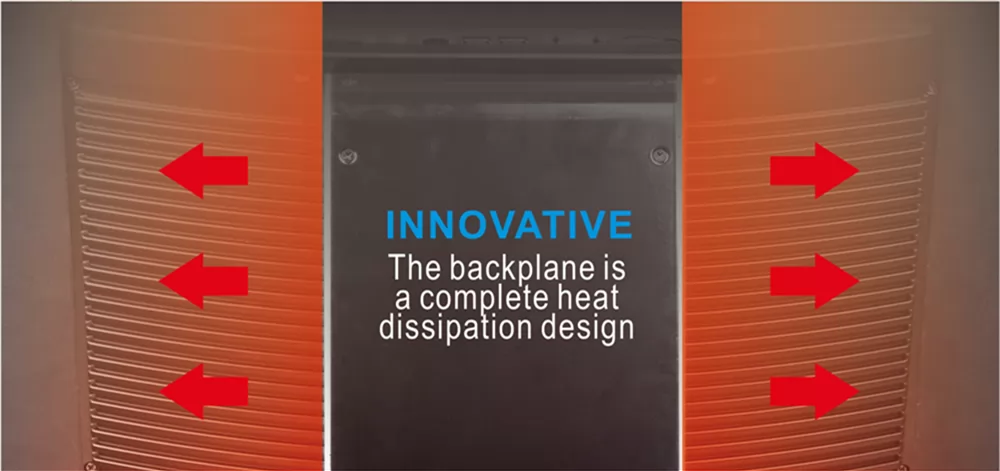

| Cooling | Fanless |
| Dimensions(W×H×D) |
Display: 535x325x70(MM) Stand: 310x435x310(MM) |
| Packing Dimensions(W×H×D) |
Display: 620x440x230(MM) With Wooden Box Stand: 490x225x230(MM) |
| Net Weight |
Display: 8.45KG Stand: 8.50KG |
| Packing Weight |
Display: 11.50KG With Wooden Box Stand: 9.20KG |
| Certification | CE,FCC,RoHS |
| Color | Black |
| OPTIONS & PERIPHERALS | |
| WIFI | IEEE 802.11 b/g/n |
| Speaker | Built-in 3W speaker |
| Bluetooth | Bluetooth 4.0 protocol(option) |
If you need customization, please send an email to contact us!
