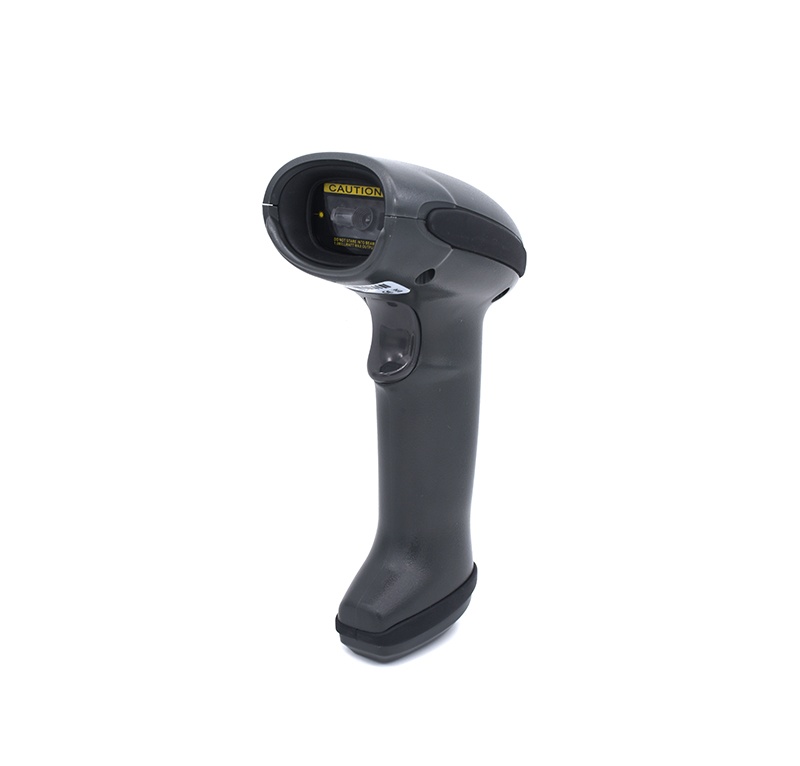

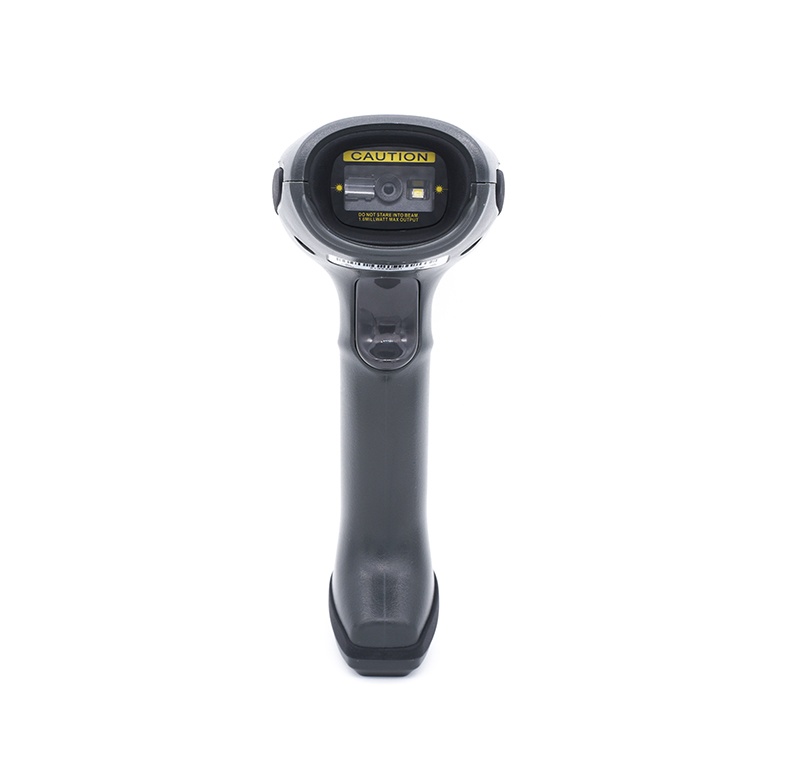

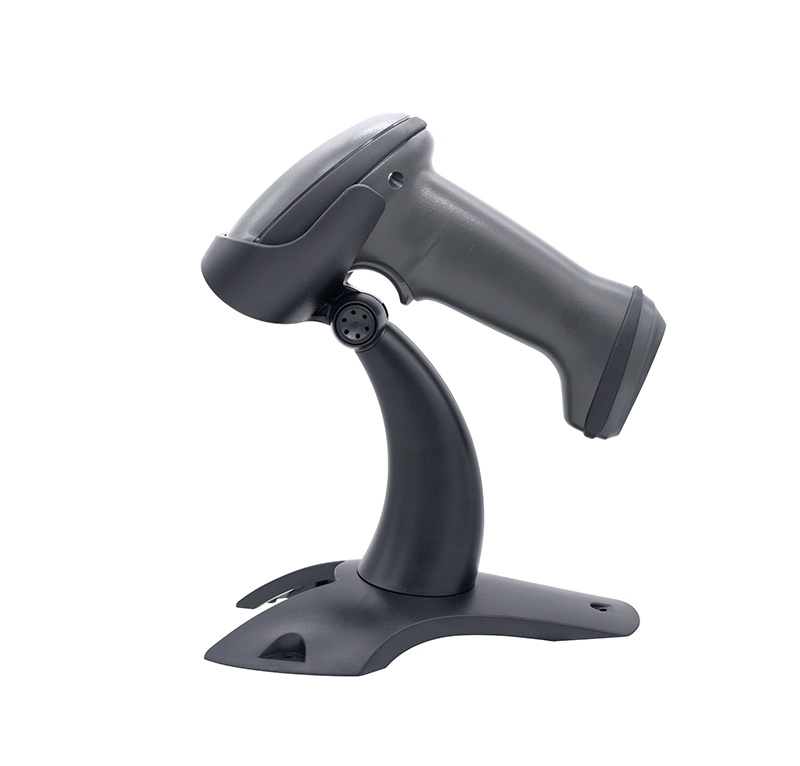

2D Table Scanner
Description
Reviews
Function introduction
- New decoding chip to interpret various 1D codes/QR codes
- Plug and play, easy to set up, and can be used quickly with other office equipment
- Wire life is longer lasting
Application areas
Mainly used in the fields of business super, monopoly, logistics,
Product parameter
|
Model Number |
JAW-6208 |
|
Performance Parameters |
|
|
Light Sources |
617nm LED Aimer,White LED |
|
Supported Symbologies |
1D:EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128,Codabar，Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN,MSI-Plessey,GS1 Databar,GS1 Composite Code,Code 11,Industrial 25,Standard 25,Plessey, Matrix 2 of 5. 2D:QR Code, Data Matrix, PDF417,Aztec, Maxicode，HanXin Code. |
|
Scan Type |
Image CMOS |
|
Resolution |
640*480 |
|
Scan Method |
Manually/Contnuous/Automatic inductive scanning |
|
Scan angle |
Yaw ±55°, Rotation 360°, Pitch ±55° |
|
Contrast |
≥20% |
|
Precision |
≥5mil |
|
Depth of scan field |
EAN13 50-200MM(13MIL);QR 25-240MM(20MIL);PDF147 30-130MM(6.67MIL) |
|
Error Rate |
Less than 1/5 million |
|
Interface |
USB-HID,USB-COM,RS232 |
|
Physical Parameters |
|
|
Dimensions |
102mm*71mm*177mm |
|
Weight |
185g |
|
Material |
ABS+PC |
|
Cable Length |
1.8M |
|
Environmental Parameters |
|
|
Operating Temperature |
-20℃~50℃ |
|
Storage Temperature |
-40℃~70℃ |
|
Ambient lighting |
0~100000LUX |
|
Relative Humidity |
5%~95%（Non-condensing） |
|
Electrical Parameters |
|
|
Voltage |
DC5V±5% |
|
Operating Current |
170mA |
|
Standby Current |
USB 25mA; RS232 2uA |
