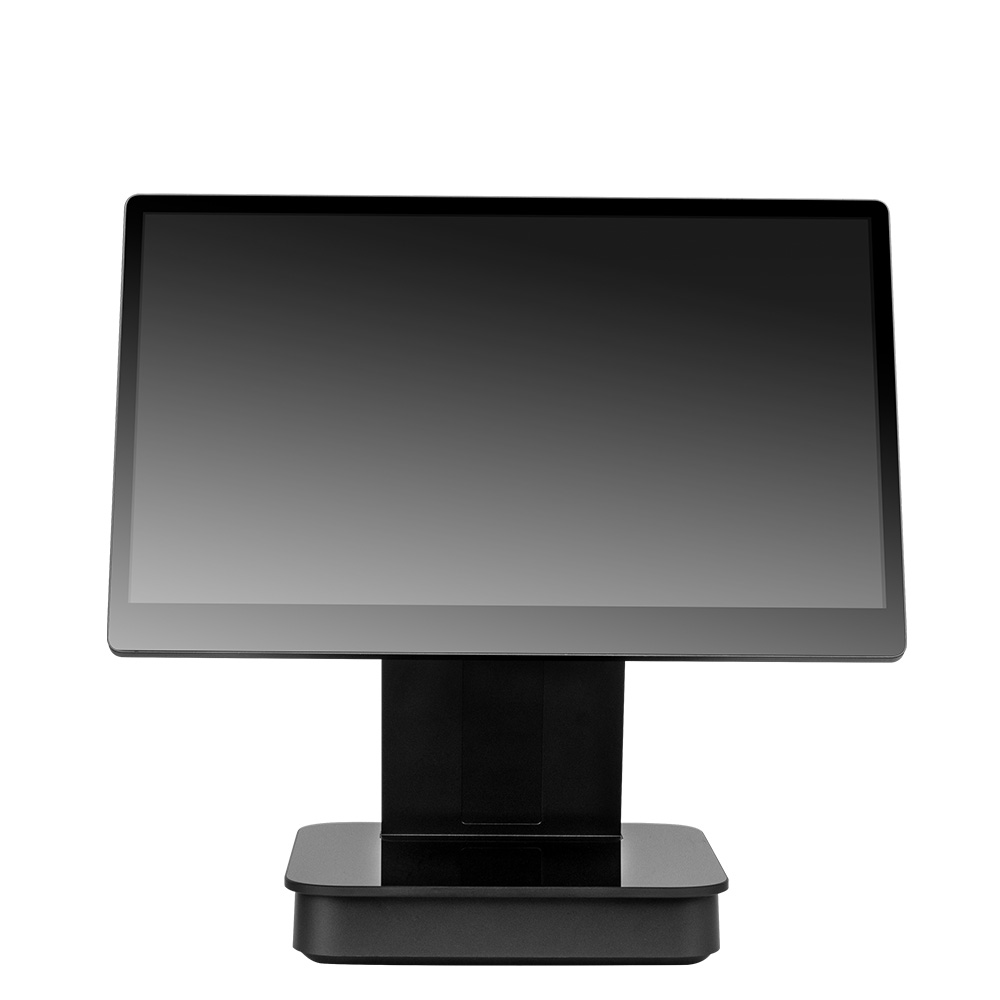

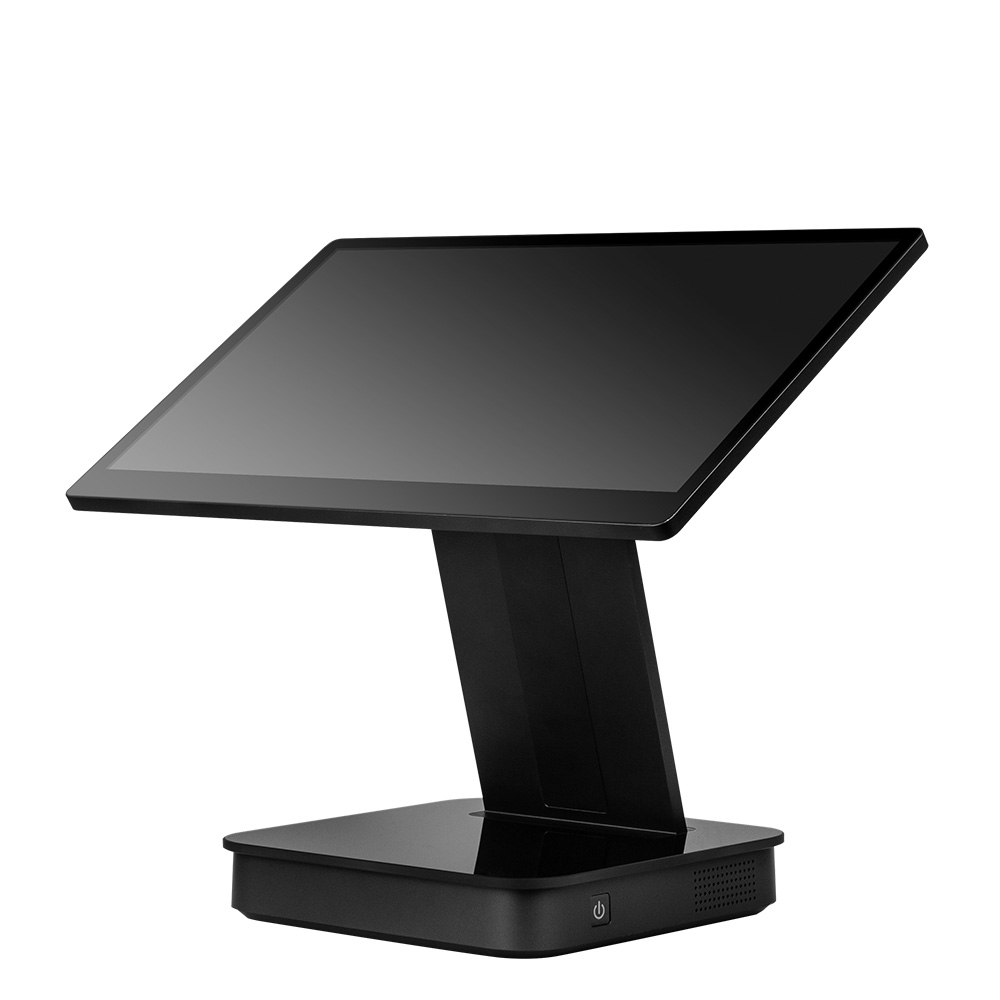

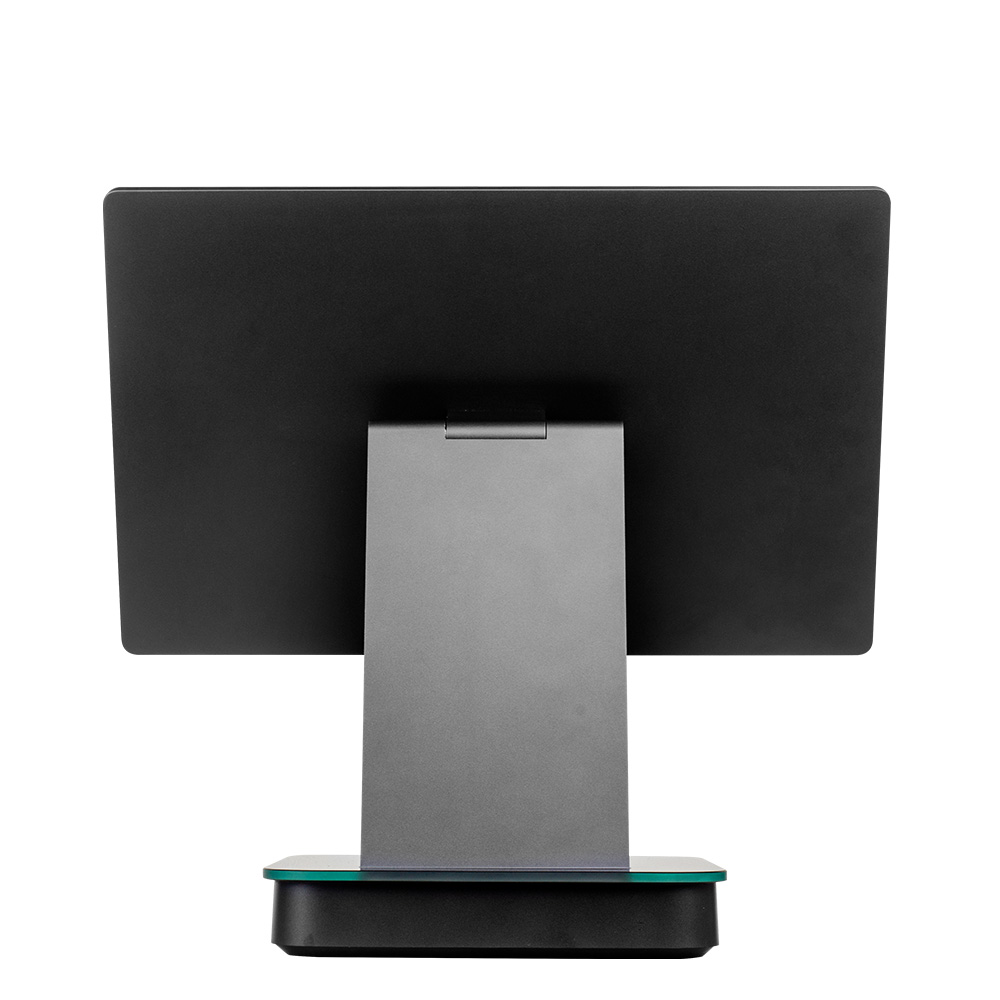

The APU156A is a 15.6-inch all-in-one Android touch terminal designed for modern retail and commercial environments that demand both performance and refined aesthetics.
15.6-Inch Precision Touch Display
Features a 15.6-inch capacitive multi-touch screen with accurate touch response, providing intuitive operation and a comfortable interaction experience for daily business use.
Powerful Android Performance
Powered by RK3566 or RK3568 quad-core Cortex-A55 processors and running Android 11, the system ensures smooth multitasking and compatibility with a wide range of POS and commercial applications.
Dual Display Support

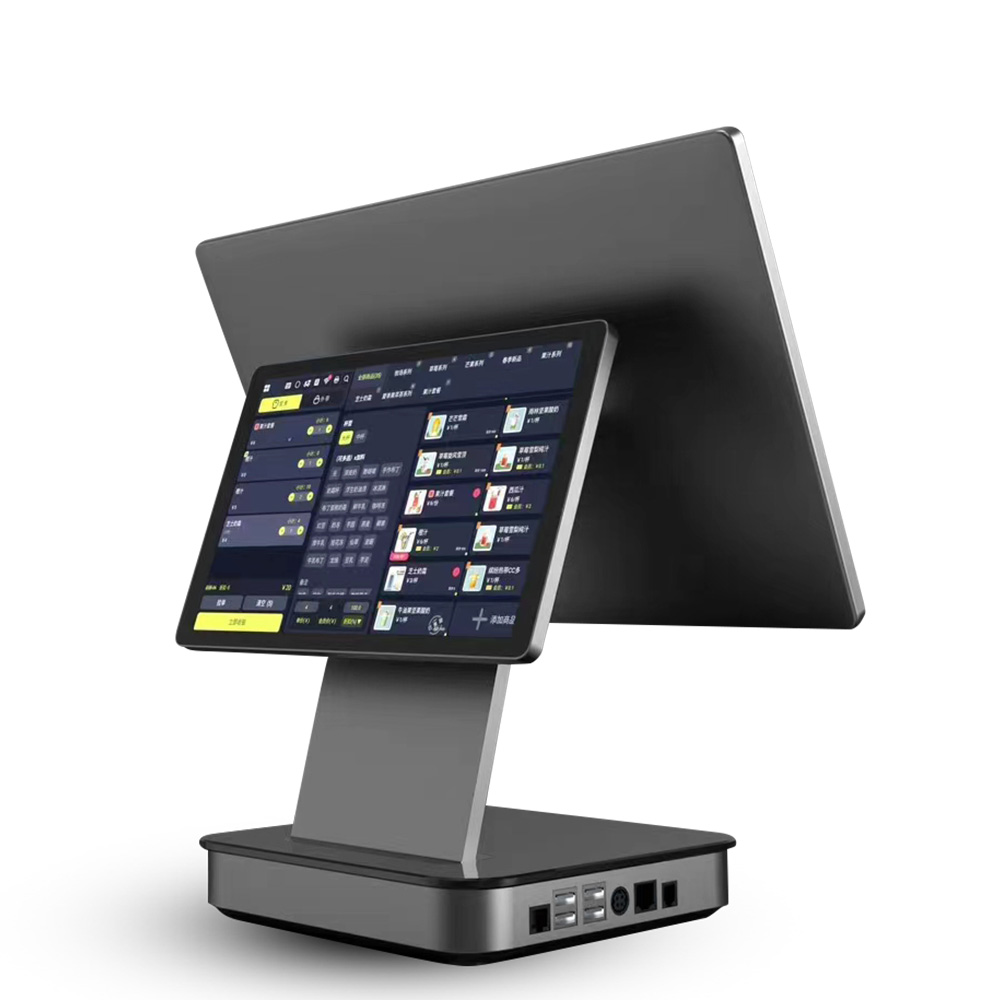

Supports an optional 10.1-inch secondary customer-facing display, ideal for showing transaction details, digital menus, or promotional content.
Rich I/O Interfaces for Easy Expansion
Equipped with multiple USB ports, LAN, serial interface, and cash drawer support, allowing easy connection to printers, scanners, and other peripherals.
Designed for Sophisticated Commercial Spaces
With its slim thickness and minimalist design, the APU156A helps create a more organized, modern, and sophisticated retail or service environment.
• Thin bezel, Provide tablet-like intuition and experience.
• Slim thickness, can create a more sophisticated space.
Specs
Model No.
APU156A
SYSTEM
Processor
RK3566 ARM Cortex-A55 Quad-Core, 1.8Ghz
RK3568 ARM Cortex-A55 Quad-Core, 2.0Ghz
Memory
2GB DDR4 (4GB Option)
Storage
16GB EMMC (32GB Option)
OS
Android 11
DISPLAY
Type
15.6 inch LED Backlight Display
Resolution
1366*768(1920*1080 Option)
Brightness
250 nits
Aspect Ratio
16:9
Touchscreen
Multi-touch capacitive screen, G+G
SECONDARY DISPLAY
Type
10.1 inch LED Backlight Display (1280*800 Non Touch)
INTERFACE
USB
4*USB(Including 1*USB OTG)
LAN
1*RJ45 10/100M Ethernet
Serial
1*RJ12
Cash Drawer
1*RJ11
Power DC-IN
Input AC 100~240V/50~60hz, Output DC 12V/2A
PHYSICAL&ENVIRONMENTAL
Operating Temperature
Operating 0~40° at 5% to 90% Humidity
Storage Temperature
Storage -20°~60° at 10% to 90% Humidity
Dimensions
(W×H×D) 363x350x210 MM
Packing Dimensions
(W×H×D) 430x450x290 MM
Net Weight
3.18KG
Packing Weight
3.60KG
Color
Tarnish
OPTIONS & PERIPHERALS
Wifi
IEEE 802.11 b/g/n, Single band 2.4 GHz
Bluetooth
Bluetooth 4.2
Speaker
1*2W
