HESTIA

Description

Function introduction

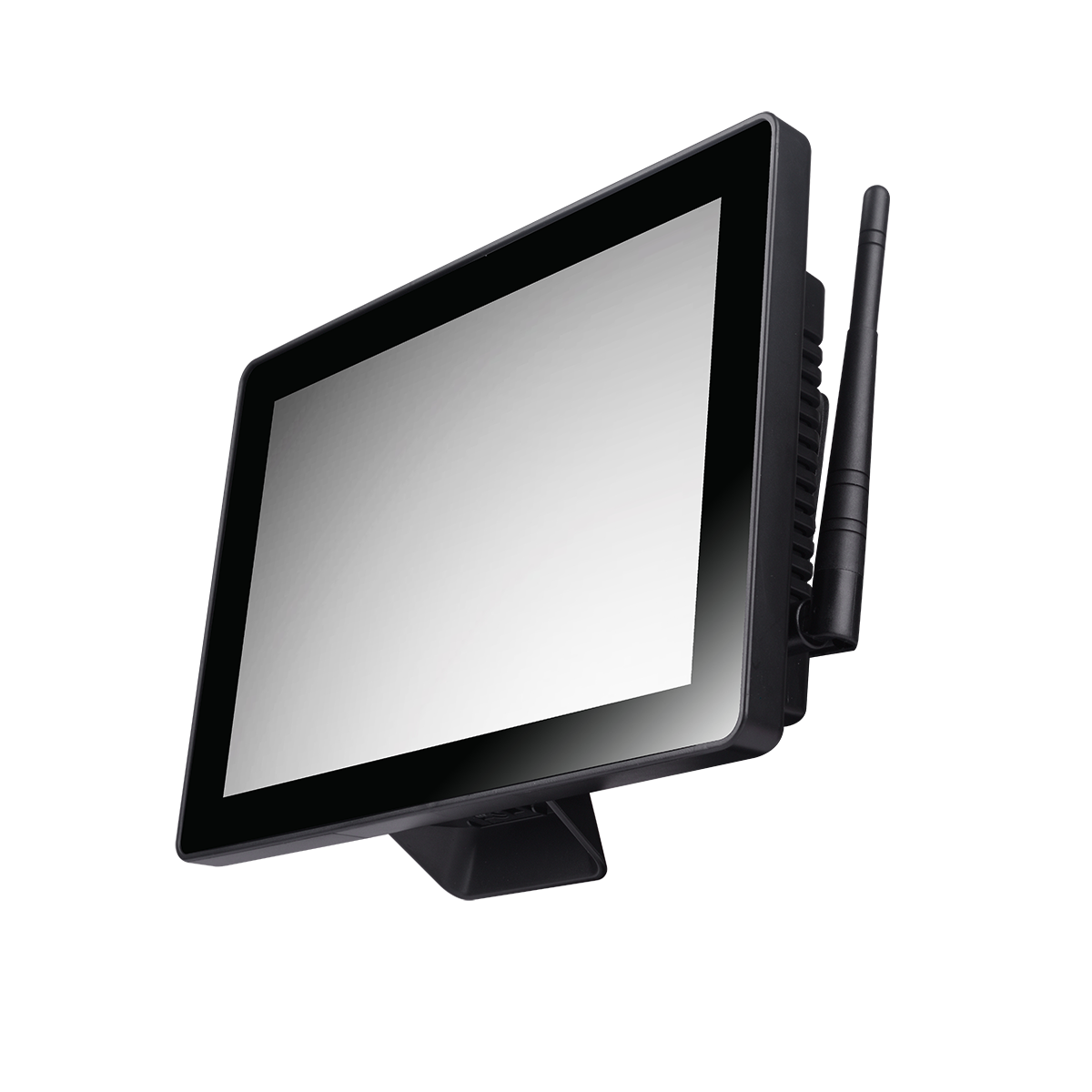

Revolutionary multi-platform ALL in One terminal designed,developed and created by Custom for Android,Linux or Windows operating systems.

panoramic touch screen measuring 12.1" /15''/15.6''or 17"and USB Hub integration for 6 x powered USB I/Oextension

Feature

HES101W
SYSTEM
Processor	Intel® Celeron® J1800 Dual Core Processor Intel® Celeron® J1900 Quad Core Processor
Memory	2GB Standard, DDR3, (up to 8GB), Optional
Storage	Msata SSD 32GB Standard, 64GB, 128GB, 256GB, Optional
OS	Windows 7, Windows8.1, Windows 10, POS Ready7
DISPLAY

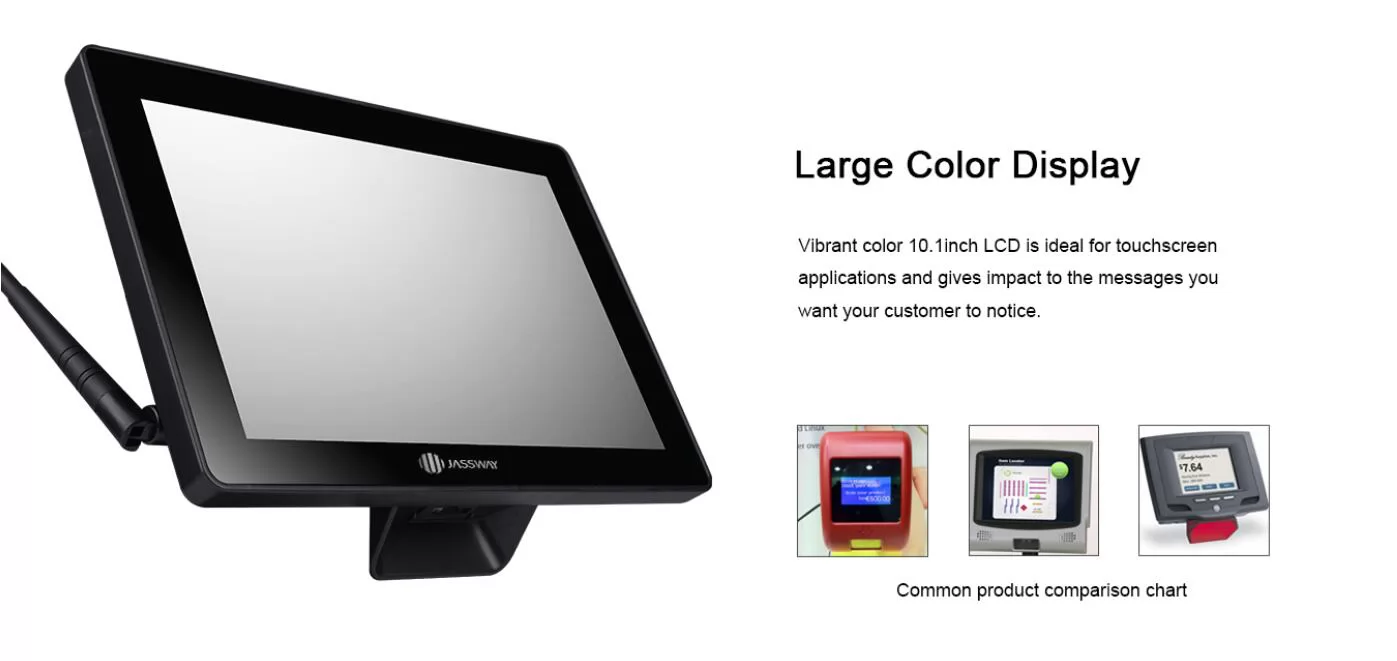

Type	10.1'' TFT LCD
Resolution	1280*800
Brightness	350cd/m2
Viewing Angle(CR≥10)	140 Degree(H)
Viewing Angle(CR≥10)	130 Degree(V)
Touchscreen	Projective Capacitive Touch Screen

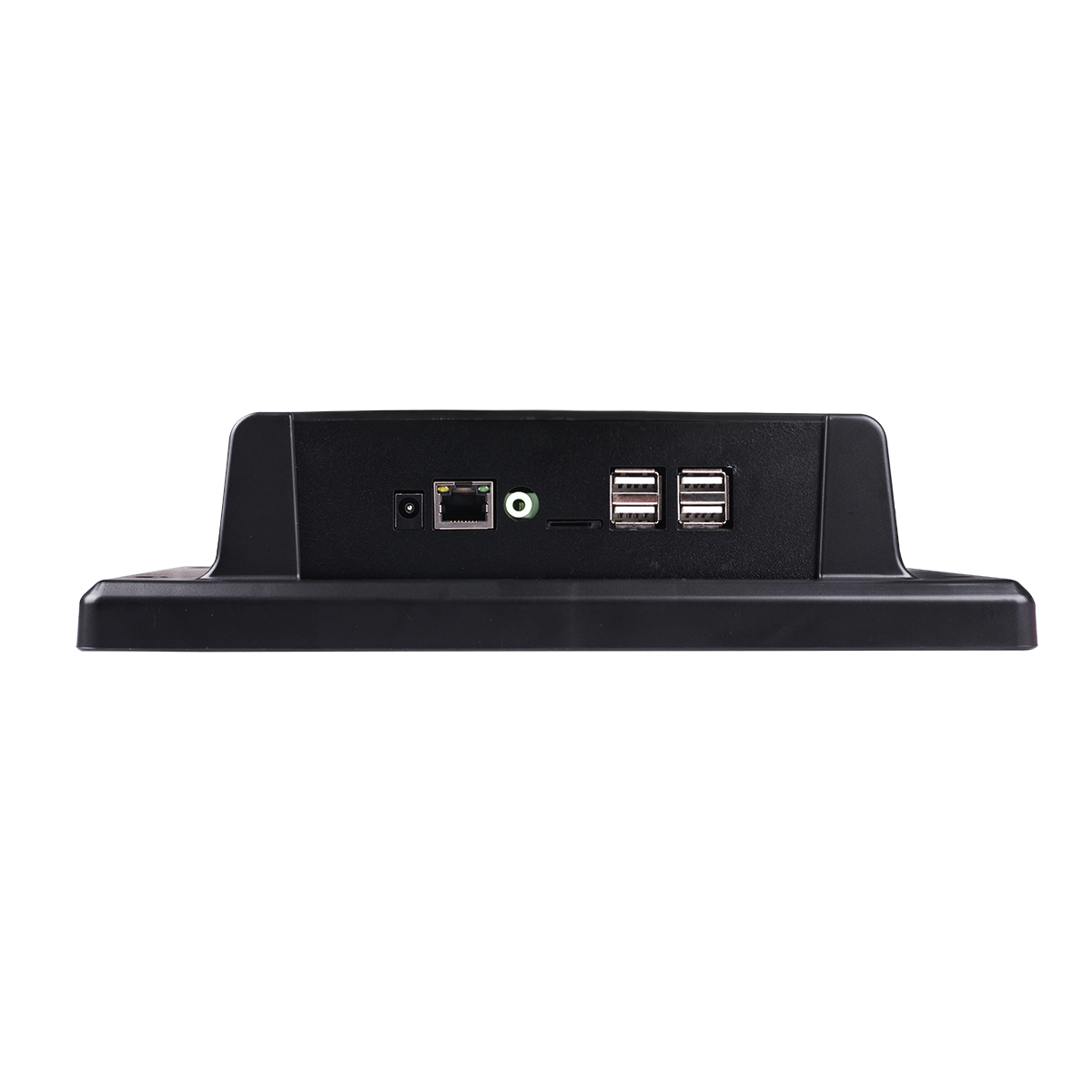

INTERFACE
USB	2USB2.0; 2 USB3.0
Serial	1*COM(RS232)
LAN	1*Gigabit Ehernet, RJ45
Audio	1*Line-Out
Expansion Slot	-
Power DC-IN	Input AC 100~240V/50~60hz, Output DC12V/8A

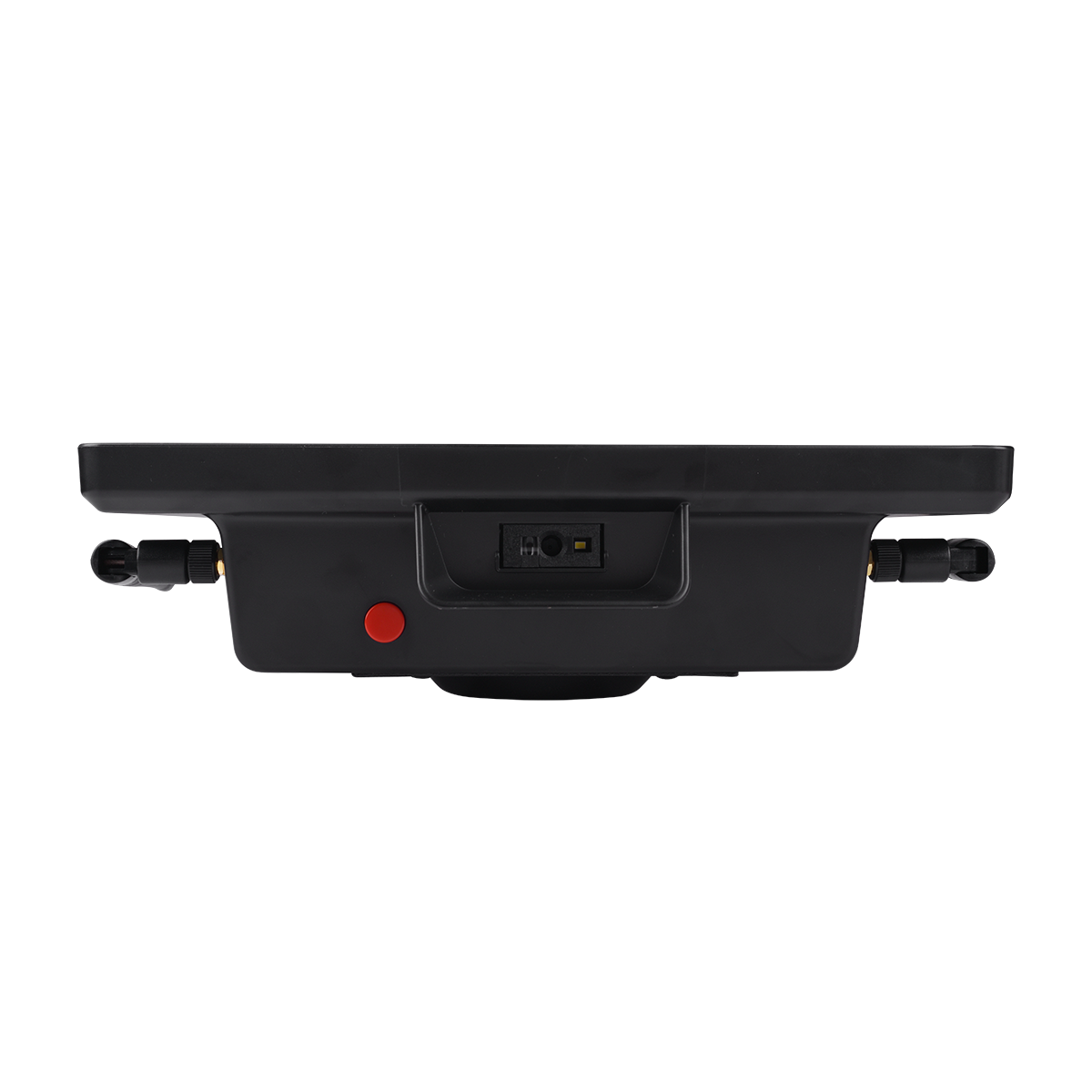

SCANNER
Supported Symbologies	1D: CODE 128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISSN/ISBN, Interleaved 2 of 5, ITF-6, ITF-4, Codebar, Matrix 2 of 5, Industrial 25, Standard 25, MSI-Plessey, Code 39, Code 93, Code11, PLessey, GS1-DataBarTM (RSS) (RSS-14, RSS-Limited, RSS-Expand).
Supported Symbologies	2D: PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200,050, ECC000, 080, 100, 140), Hanxin.
PHYSICAL&ENVIRONMENTAL
Operating Temperature	Operating 0~60°
Storage Temperature	Storage-35°~75°
Dimensions(W×H×D)	260 x 175 x 60(mm)
Packing Dimensions(W×H×D)	360 x 280 x 160(mm)
Net Weight	1.57KG
Packing Weight	2.74KG
Color	Black/White

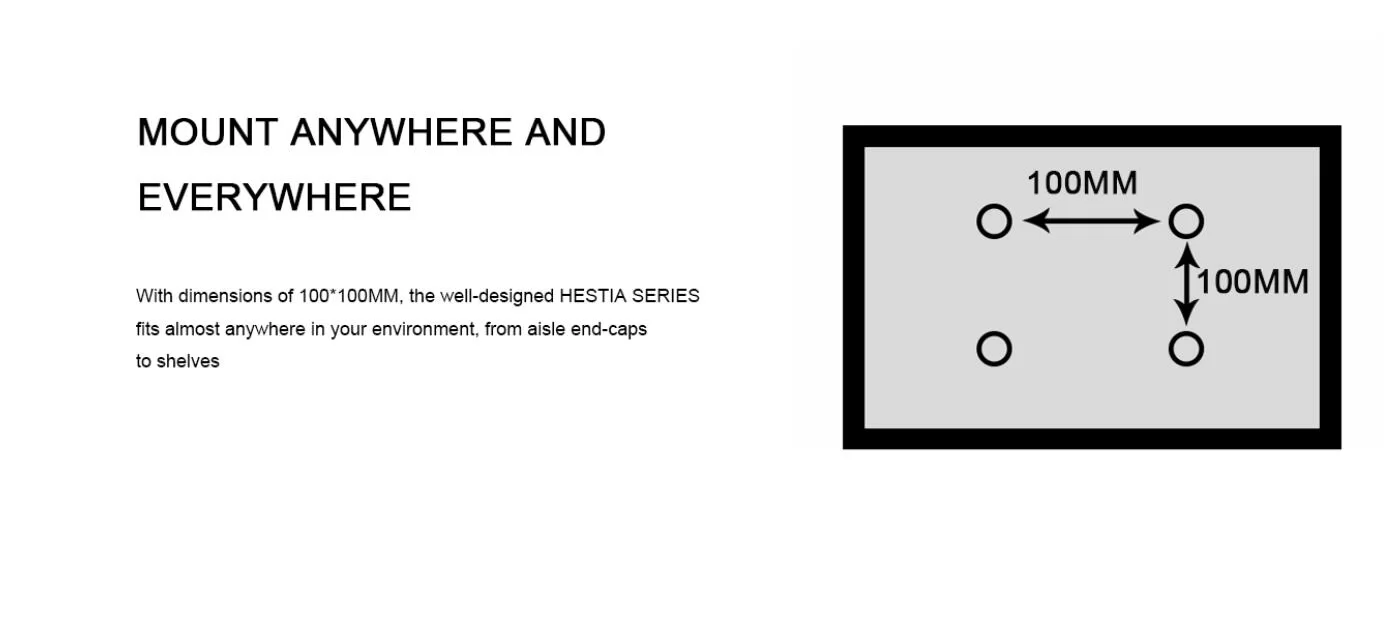

VESA	100*100mm bracket
Built-in Functions
WIFI	Mini PCIe for Wireless LAN
